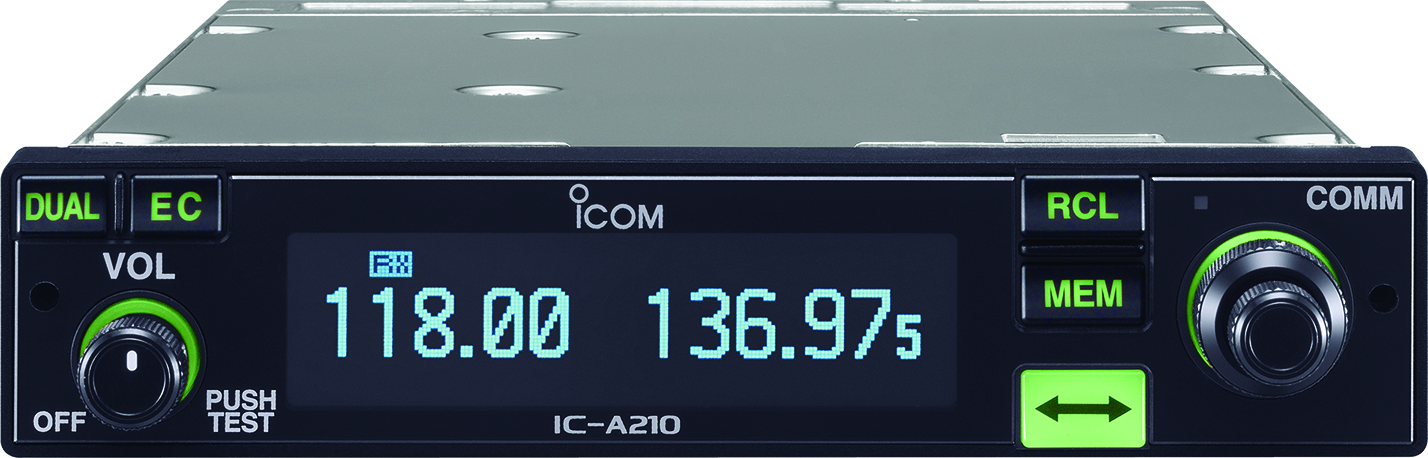

IC-A210 VHF Air Band Transceiver


Large, bright OLED display

A fixed mount VHF airband first! The IC-A210 has an organic light emitting diode (OLED) display. The OLED display emits light by itself and the display offers many advantages in brightness, vividness, high contrast, wide viewing angle and response time compared to a conventional display. In addition, the auto dimmer function adjusts the display for optimum brightness — day or night.



Easy channel selection

It’s fast and easy to select any of the IC-A210's memory channels. The “flip-flop” arrow button switches between main and stand-by channels. The dualwatch function allows you to monitor two channels simultaneously. In addition, the auto stack memory stores the last 10 channels used and allows you to recall those channels easily.

GPS memory function

When connected to an external GPS receiver equipped with an airport frequency database, frequency data for nearby airports can be used in the IC-A210.

12V/24V DC power source

The built-in DC-DC converter accepts a 12/24V (11.5–27.5V) DC power source. The IC-A210 is easily installed in most airplanes or vehicles.

Intercom functions

The IC-A210 has a built-in voice activated intercom function allowing the pilot to talk with the copilot via the headset. The IC-A210 has adjustable audio level and squelch control functions.

Easy installation

The IC-A210 neatly fits inside the common mounting brackets used on most airplanes including Icom’s IC-A200. Two types of rear-panel adapters are included, allowing for streamlined plug-in connectivity.

Other features

  • 10 regular memory channels with a 6-character channel name
  • 200 group memory channels (20 Ch × 10 banks) with a channel tag
  • NOAA weather channel receive (USA version only)
  • One touch access to 121.5MHz emergency frequency
  • Side tone function for monitoring your voice with headset
  • ANL (Automatic noise limiter) function reduces pulse type noise
  • Remote control capability
  • Time-out-timer
  • VFO scan
  • PC programming capability
  • Dial lock and panel lock
  • Squelch test function
Product Features
General

Frequency coverage

Tx/Rx

Rx Wx channels


118.000-136.975 MHz
161.650-163.275 MHz*
(*USA version only.)
Frequency spacing 25 kHz
Frequency stability ±5ppm
Operating Temperature -20°C to +55°C
Antenna impedeance 50Ω
No. of memory channels 10 regular memory,
200 group memory,
10 GPS, 10 Weather*,
10 auto stack memory
(* USA version only)
Power supply requirement 11.5-27.5V DC (negative ground)
Current drain (at 13.8 V DC)
Transmit
Receive

5A max.
4A – AF max.
0.5A – Stand-by

Dimensions (W×H×D)

(projections not included)

160 × 34 × 271 mm

6616 × 11132 × 102132 in

Weight (approx.) 1.0 kg; 2.2 lb
Transmitter
Output power 8 W typical (carrier power)
Spurious emission Less than -60dB
Microphone impedance 600Ω
Receiver

Intermediate frequencies

1st

2nd



38.85 MHz

450 kHz

Sensitivity – AM Less than 2.0 µV for 6 dB S/N (with 1 kHz, 30% mod.)
Selectivity

±3 kHz for 6dB S/N

±22 kHz for 60dB S/N

Spurious rejection Less than 74dB
Audio output power

5W with a 4Ω load

60mW with a 500Ω load

Product Accessories
  • HM-176 HAND MICROPHONE + PS-80 DC POWER SUPPLY
    Provides convenient operation of the IC-A210 on the ground. Includes built-in speaker and and HM-176* microphone.
    Dimensions: 200(W) × 200(H) × 300(D) mm; 7.9(W) × 7.9(H) × 11.8(D) in. Output: 13.8 V DC/6A.

    A 210

  • SP-5 EXTERNAL SPEAKER
    sp5 external speaker

  • MB-113 REAR PANEL ADAPTER
  •

A210 25M

  • MB-53 MOUNTING BRACKET
    For mounting the IC-A210 to a vehicle. External speaker (SP-5) and microphone (HM-176) are included.

    Mounting bracket
  • SP-5 EXTERNAL SPEAKER
    sp5 external speaker

  • MB-113 REAR PANEL ADAPTER
  •
