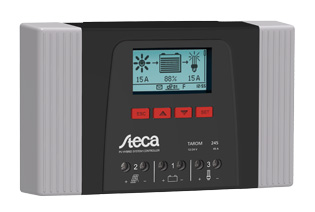

Steca Tarom 245, 445
The new design for the Steca Tarom sets new standards in this power class. A graphic display informs the user about all important system data and enables configuration and adjustment of the controller to the specific requirements of the individual system.

Numerous clever functions allow the user to adjust the controller to the particular features of the system in question. Thanks to the significantly improved state of charge determination, the system is optimally controlled and the batteries are protected. The Steca Tarom charge controller is the best choice for system sizes of up to 2400 Wp at three voltage levels (12 V, 24 V, 48 V).

The integrated data logger stores all important system data which can be read via an open Steca RS232 interface. As an option, an external temperature sensor can also be connected.

Two additional switching contacts can be freely configured as a timer, a night light function, to start generators or as surplus management.
Product Features

* Hybrid controller

* State of charge determination with Steca AtonIC (SOC)

* Automatic detection of voltage

* PWM control

* Multistage charging technology

* Load disconnection depending on SOC

* Automatic load reconnection

* Temperature compensation

* Common positive grounding or negative grounding on one terminal

* Integrated data logger

* Night light function

* Integrated self test

* Monthly maintenance charge

* Integrated energy meter

* Two configurable multifunctional contacts

Electronic protection functions

* Overcharge protection

* Deep discharge protection

* Reverse polarity protection of load, module and battery

* Reverse polarity protection by internal fuse

* Automatic electronic fuse

* Short circuit protection of load and module

* Overvoltage protection at module input

* Open circuit protection without battery

* Reverse current protection at night

* Overtemperature and overload protection

* Battery overvoltage shutdown


* Graphical LCD display with backlighting

- for operating parameters, fault messages, self test


* Simple menu-driven operation

* Programming by buttons

* Manual load switch


* Steca RS485 bus

* Open Steca RS232 interface


* External temperature sensor

* Alarm contact


* Compliant with European Standards (CE)

* RoHS compliant

* Developed in Germany

* Manufactured according to ISO 9001 and ISO 14001
