The Xtender series provides an unmatched freedom of use due to its many functions. In a basic application, it offers a total package: the functions of inverter, battery charger, transfer system and assistance to the source. These functions can be combined and controlled in a totally automatic way for exceptional ease and optimal management of available energy.

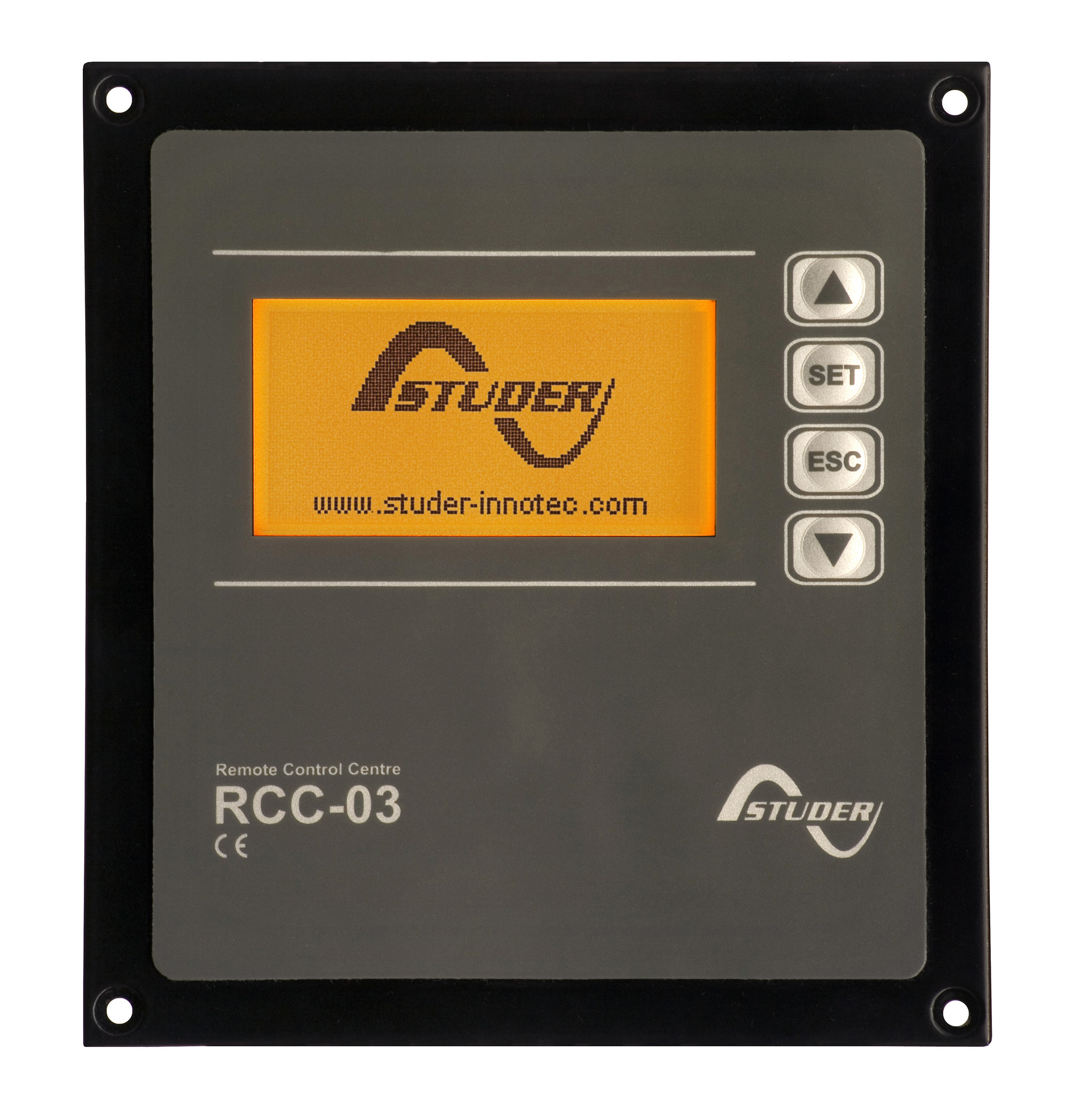

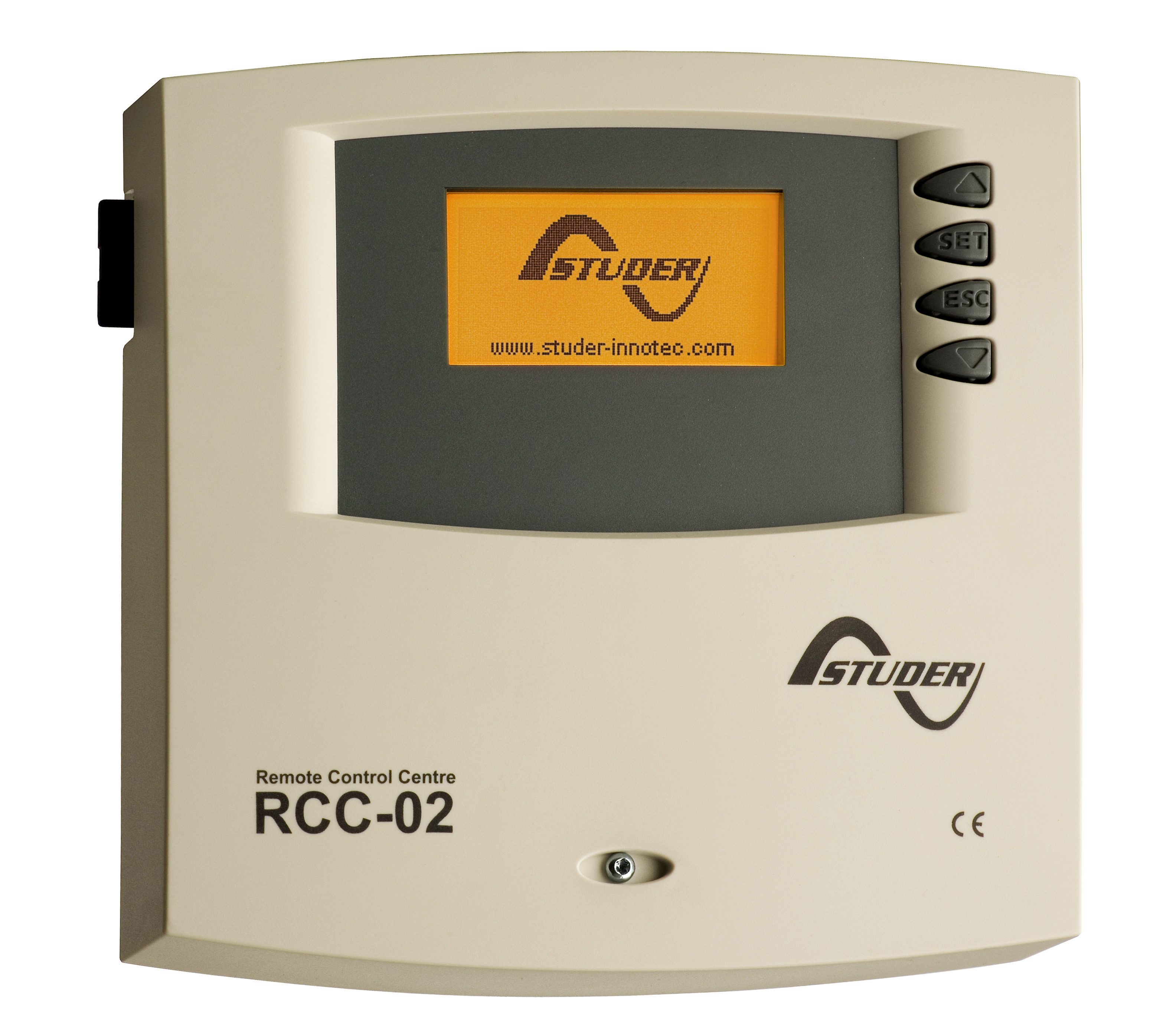

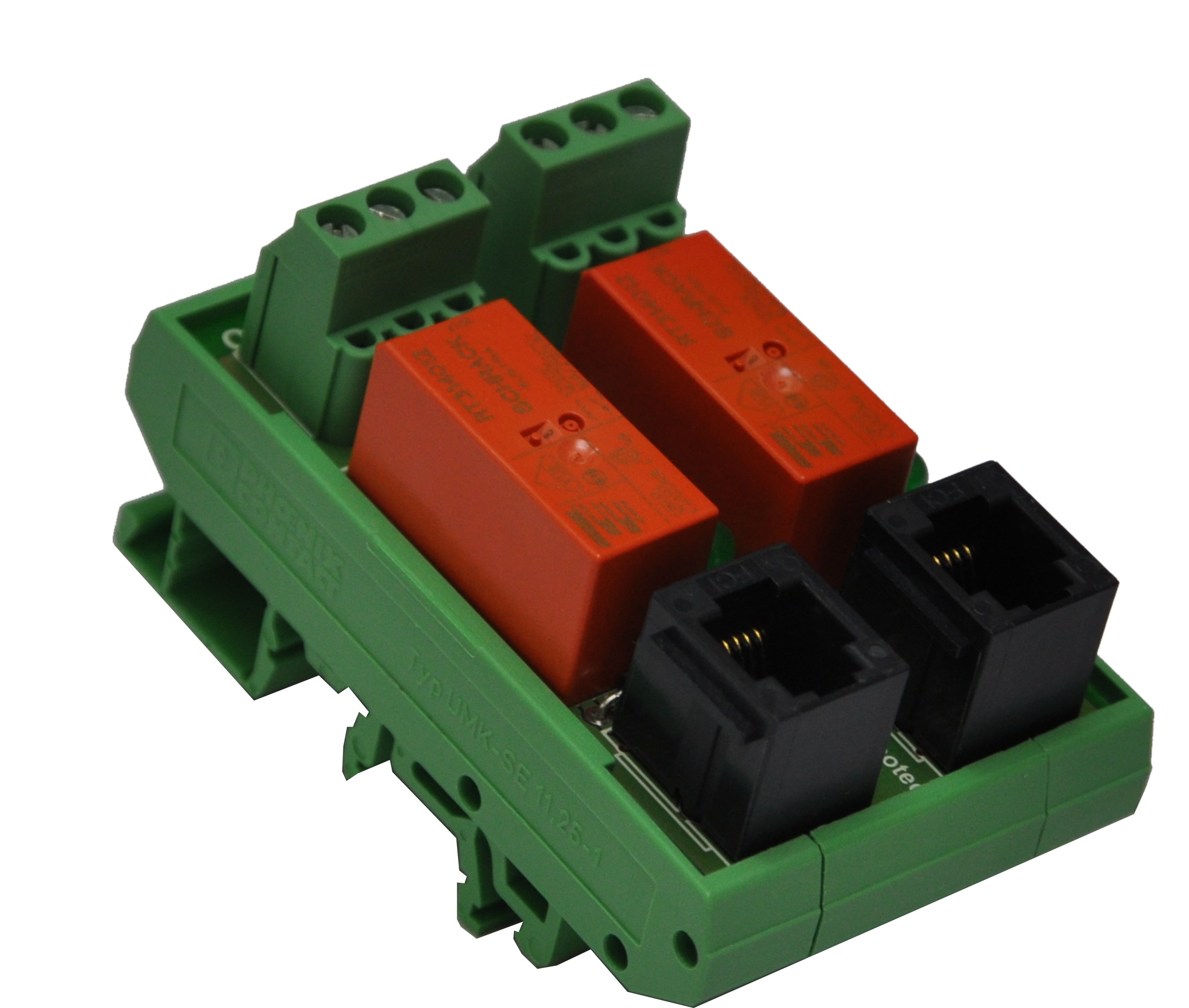

Its programmable auxiliary contacts also permit interconnection with existing systems or the implementation of extended functions. Fully programmable by means of its remote control, it enables the software update; thus making it an upgradeable product to which new functions may be added further on. Through the implementation of several units, it is possible to create a 3-phase source or to set them in parallel, in order to increase the power available. Up to 9 Xtender series inverters can then be combined together.
| Output voltage | Battery voltage | Charge current |
Maximum current | Power P30 / pNom |

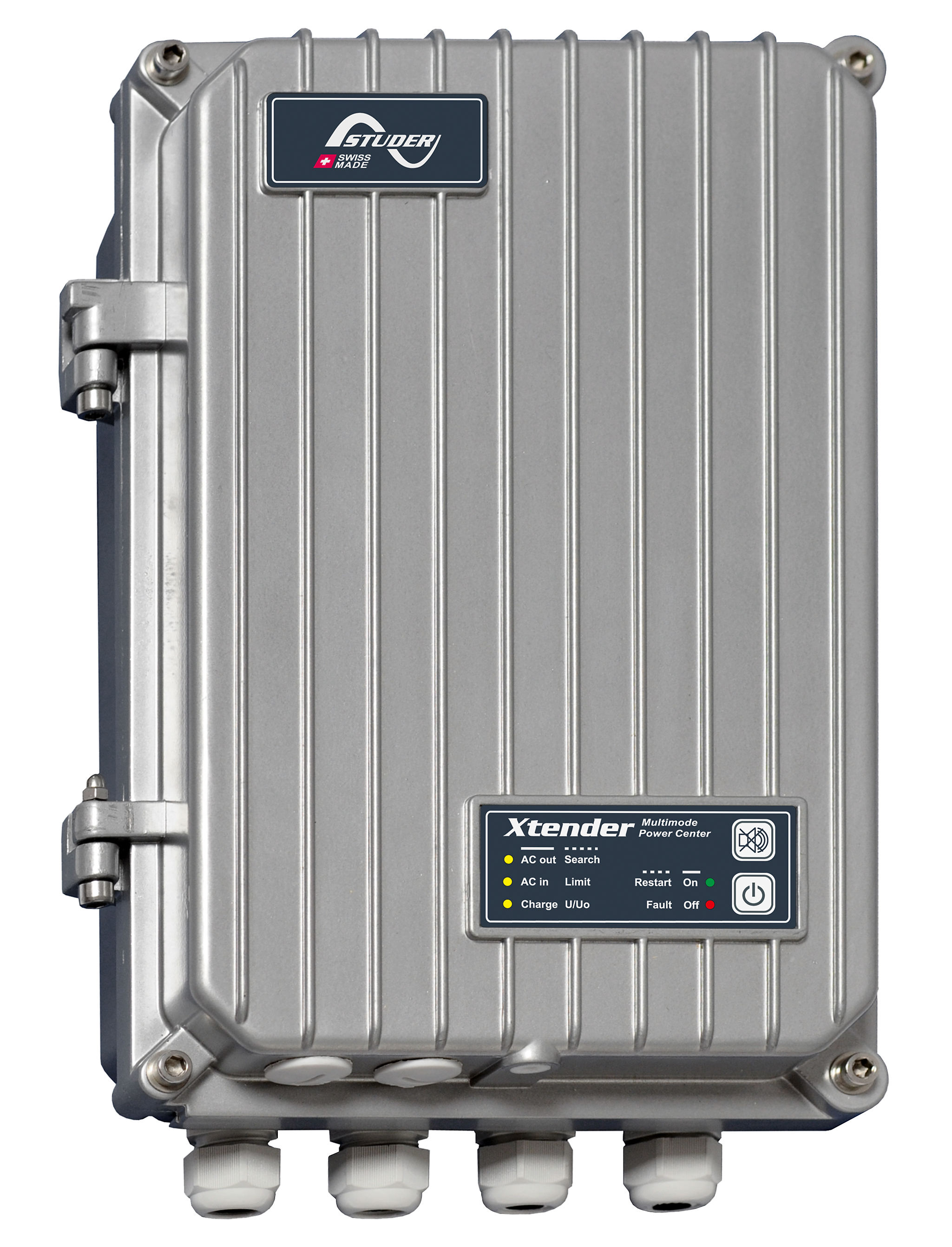

| XTS 900-12 (-01) |
230 Vac / 50 Hz | 12 Vdc | 35 Adc |
16 Aac | 900 * / 500 VA |
| XTS 1200-24 (-01) |
230 Vac / 50 Hz | 24 Vdc | 25 Adc |
16 Aac | 1200 * / 650 VA |
| XTS 1400-48 (-01) |
230 Vac / 50 Hz | 48 Vdc | 12 Adc |
16 Aac | 1400 * / 750 VA |

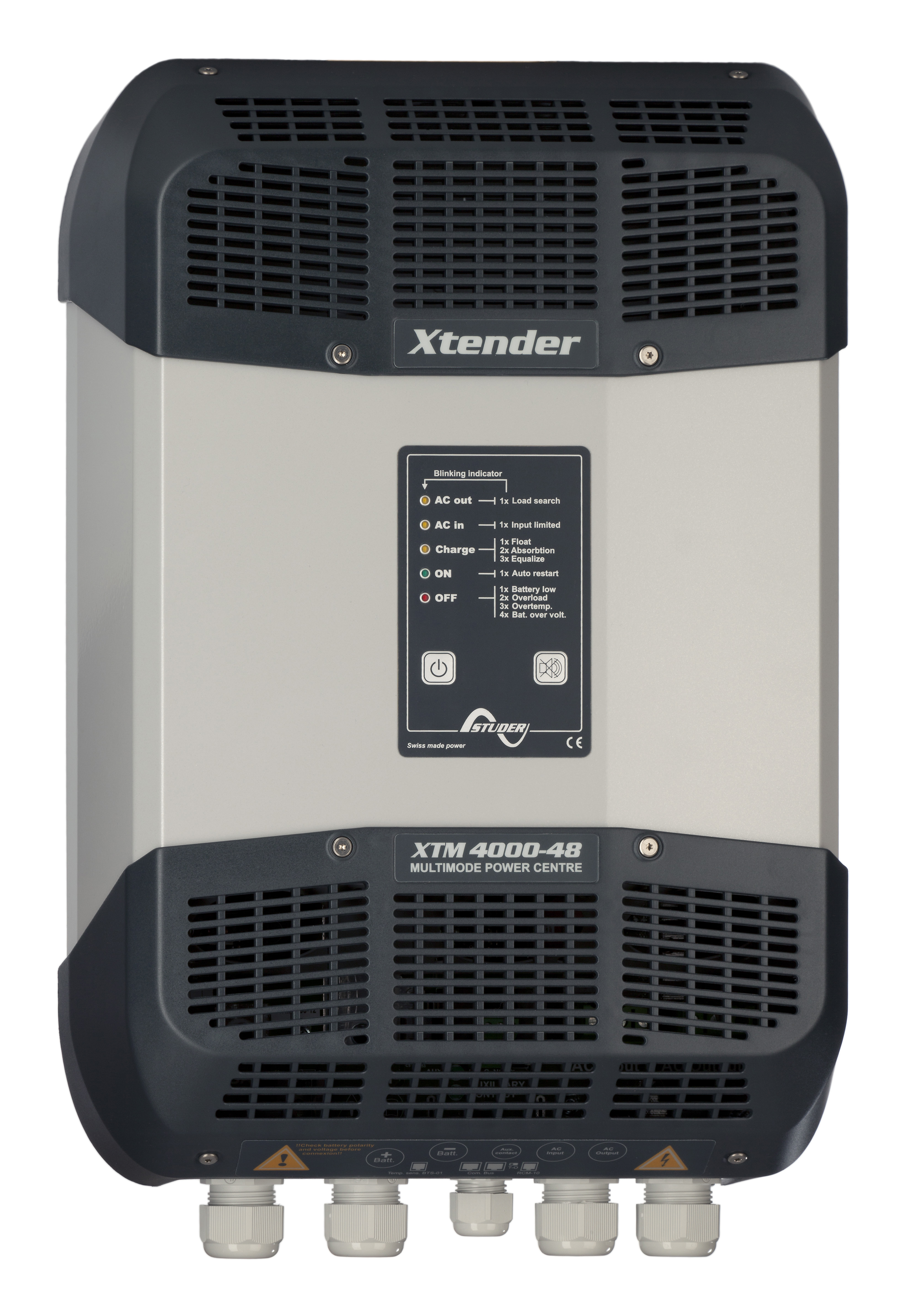

| XTM 1500-12 (-01) |
230 Vac / 50 Hz | 12 Vdc | 70 Adc |
50 Aac | 1500 / 1500 VA |
| 100 Adc |
50 Aac | 2000 / 2000 VA |
| XTM 2400-24 (-01) |
230 Vac / 50 Hz | 24 Vdc | 55 Adc |
50 Aac | 2400 / 2000 VA |
| XTM 2600-48 (-01) |
230 Vac / 50 Hz | 48 Vdc | 30 Adc |
50 Aac | 2600 / 2000 VA |
| XTM 3500-24 (-01) |
230 Vac / 50 Hz | 24 Vdc | 90 Adc |
50 Aac | 3500 / 3000 VA |
| XTM 4000-48 (-01) |
230 Vac / 50 Hz | 48 Vdc | 50 Adc |
50 Aac | 4000 / 3500 VA |

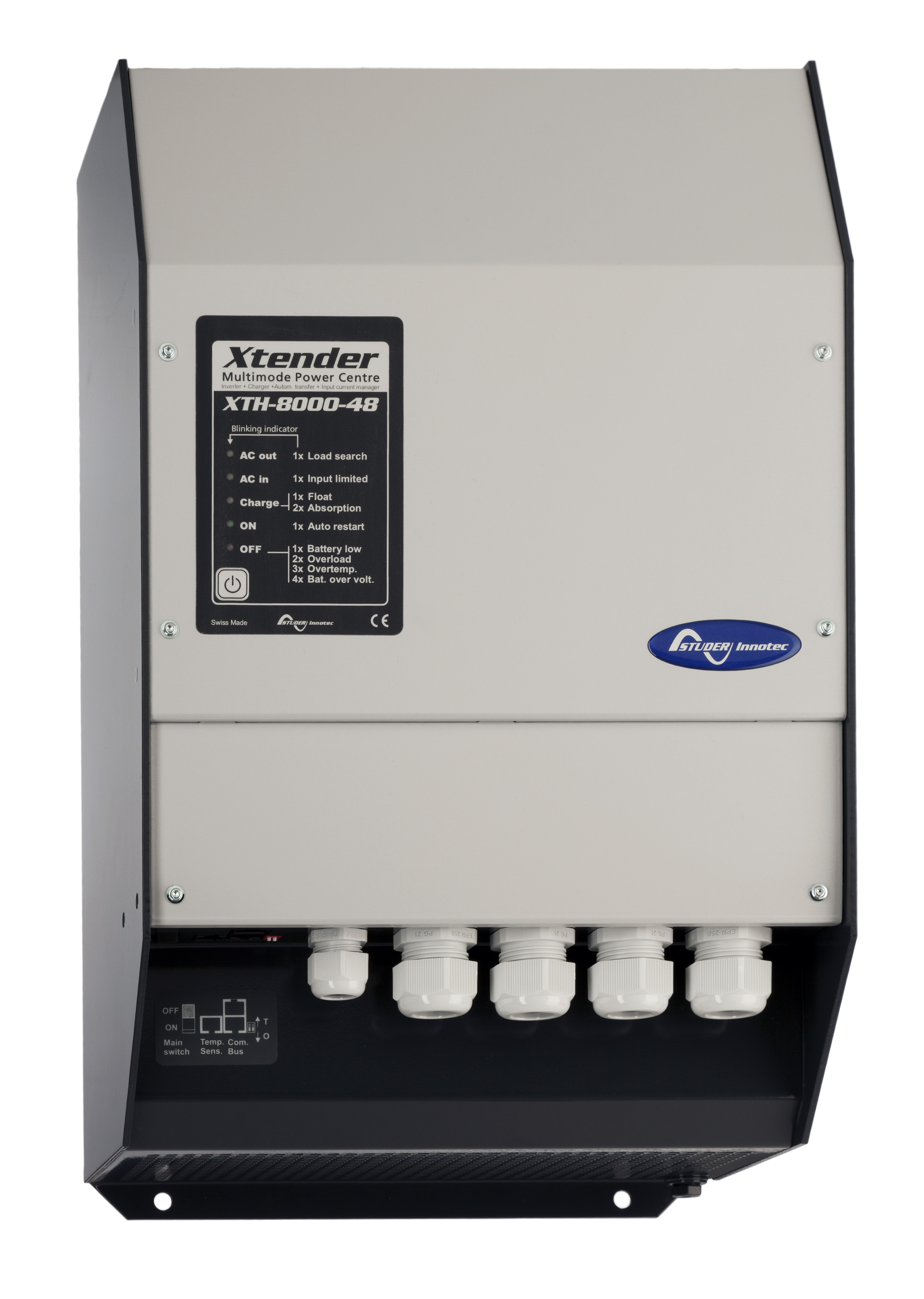

| XTH 3000-12 (-01) |
230 Vac / 50 Hz | 12 Vdc | 160 Adc |
50 Aac | 3000 / 2500 VA |
| XTH 5000-24 (-01) |
230 Vac / 50 Hz | 24 Vdc | 140 Adc |
50 Aac | 5000 / 4500 VA |
| XTH 6000-48 (-01) |
230 Vac / 50 Hz | 48 Vdc | 100 Adc |
50 Aac | 6000 / 5000 VA |
| XTH 8000-48 |
230 Vac / 50 Hz | 48 Vdc | 120 Adc |
50 Aac | 8000 / 7000 VA |
| (-01) |
All Xtender series devices (except for the XTH 8000-48) are also available in 120Vac /60Hz (model -01). |
| * |

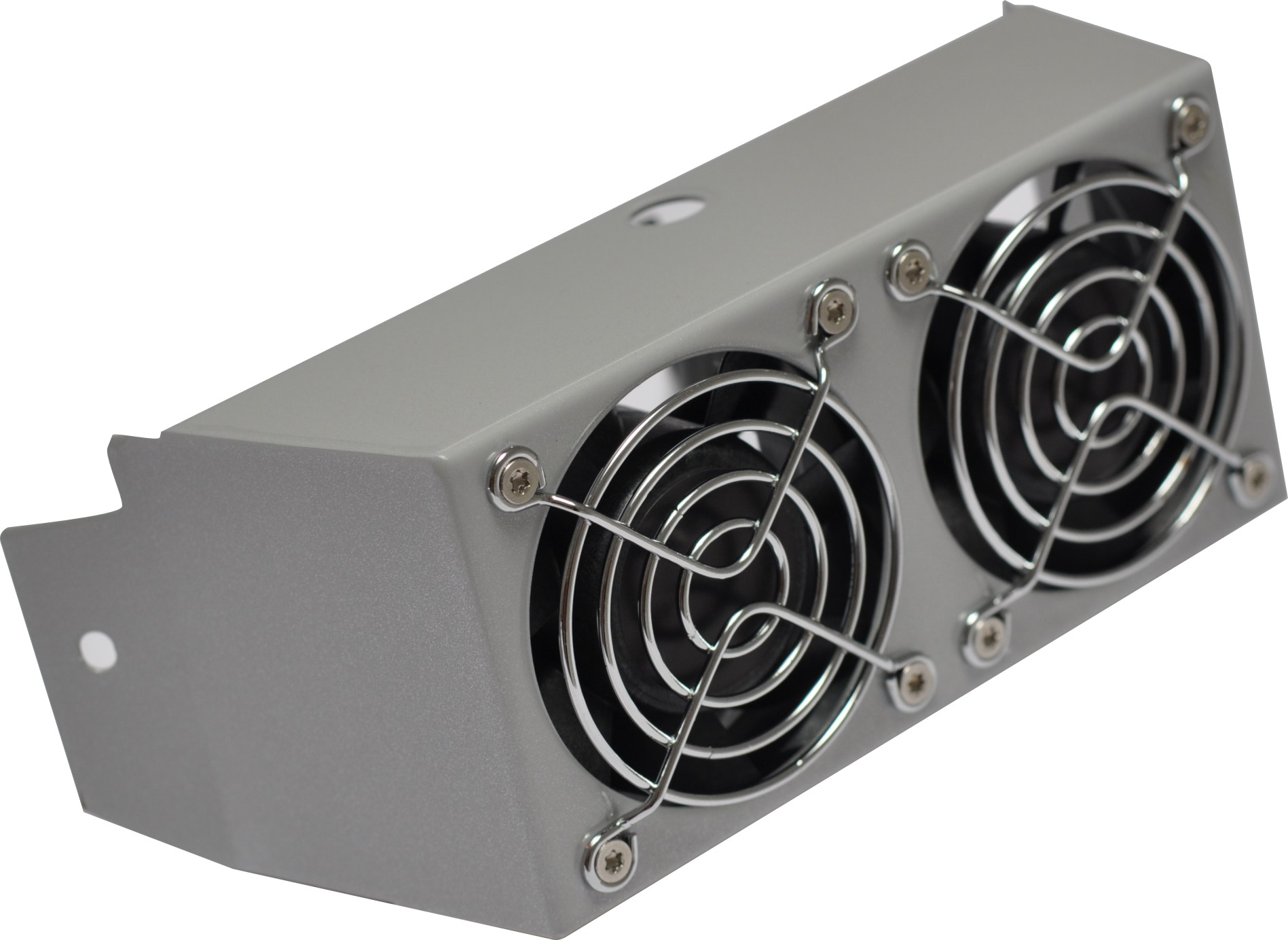

These P30 powers are valid only when using the cooling module ECF-01. |
| |
|
Features and Performances
- True sine wave voltage.
- Reliable and silent with any kind of load.
- Outstanding overload capabilities.
- Smart-Boost function for assistance to the source even with difficult loads.
- Automatic reduction of peak loads (power shaving).
- Multi-stage programmable battery charger with PFC.
- Stand-by level adjustable over a large range and from a very low threshold.
- Ultra-fast transfer relay.
- Control by digital signal processors (DSP).
- High efficiency.
