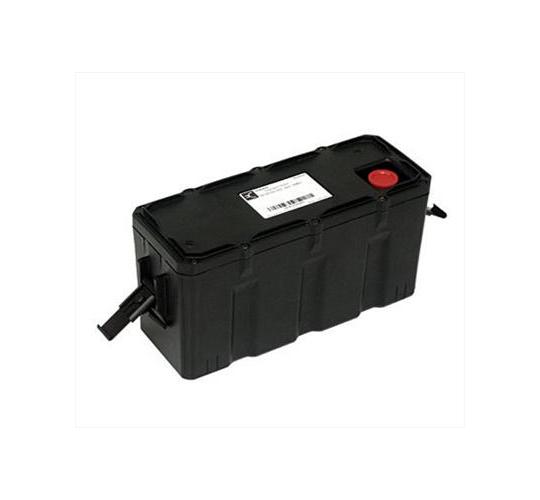

2110 Manpack Batteries

With Codan’s intelligent battery management system you can easily manage your battery operation and reduce operational costs. It continuously displays the battery condition and charging state, giving you confidence for mission critical operations. Three battery types are available to tailor the 2110 or 2110M to suit your mission.

Key Features :

  • Intelligent battery system

    Codan’s integrated battery management controller continuously monitors battery condition, usage and remaining capacity, and automatically prevents batteries from being overcharged for maximum battery life.

  • Long battery usage

    Codan’s 2110 transceiver delivers the lowest current consumption of any available manpack transceiver (120mA standby current). You can operate continuously for several days on a single battery charge, without the need to lug a spare battery.

  • Durability

    Codan’s battery packs are waterproof and comprise of high grade, high impact plastics - a must for operation in extreme environments:
    • Sealed Lead Acid 7 Ah
    • Nickel Metal Hydride 8 Ah
    • Nickel Metal Hydride 13 Ah

Product Specifications
  • Cell chemistries and capacity

    Sealed lead acid 7 Ah
    Nickel Metal Hydride 8 Ah and 13 Ah

  • Voltage

    12 V

  • Operating temperature

    –30°C to +60°C

  • Storage temperature

    –10°C to +30°C (recommended)

  • Standard Charge

    Constant current between 1 A and 3 A with automatic overcharge protection

  • Connector

    6 way waterproof MIL type connector

  • Dimensions

    245 mm W x 100 mm D x 92 mm H

  • Weight

    8 Ah NiMH: 2.1 kg
    13 Ah NiMH: 2.9 kg
    7 Ah SLA: 3.2 kg

  • Case material

    High impact polycarbonate/PET polyester
    blend, UV stabilised, flame retardant

  • Colour

    Black

  • Approvals

    CE, C-tick

  • Environmental

    Per MIL-STD-810F including shock, vibration, humidity, immersion
    (1 hr at 1 m) and rough handling
