MRX-I

The MRX NGT™ Interoperability Headquarters System is a fully ruggedised (MIL-STD-810F) field deployable Headquarters System, supporting voice, data and an array of encryption options.

Key Features :

  • Quick to install

    Providing a deployable backbone communication system, the MRX can be quickly installed and interconnected with local infrastructure.

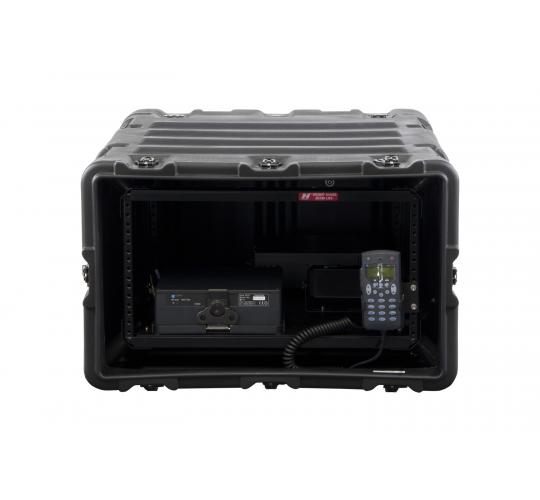

    Housed in a 19 inch shock-mounted framework, and available in 125, 500 or 1000 W systems, the transit case provides shock and vibration protection during transportation.

  • Full spectrum communications

    The NGTTM can be combined with a suite of interoperability products such as the Radio Interface Unit (RIU) and Operator Interface Unit (OIU). This system supports real-time “drag and drop” configuration of individual and multiple communication links, and interfacing with PBXs/PSTN lines, VOIP, LANs (data support) and other radio assets. This capability provides full spectrum communications support to ground operators through HF, VHF, UHF and Satellite systems.

  • Easy to use

  • Email, fax, GPS tracking and telephony support

  • Legacy system interoperability

  • 125 W standard

  • 500/1000 W system options

  • JITC Certified MIL-STD-188-141B ALE and FED-STD-1045 ALE/CALMTM

  • MIL-STD-810F deployable system

  • AC supply

  • IP remote control

  • COMSEC solution

    CES-128 bit
    AES-256 bit

Product Specifications

  • Frequency range

    1.6 to 30 MHz transmit, 250 kHz to 30 MHz receive

  • Power rating

    125, 500 or 1000 W PEP systems available

  • Channel capacity

    NGTTM SRx: 400 channels

  • Operating mode

    J3E, USB, LSB, AM, ISB (option)

  • RF output impedance

    50Ω


Mechanical :

  • Temperature rating

    –10°C to 60°C, 95% humidity

  • AC operating range

    100 to 240 V AC ±10% 50/60 Hz

  • Protection

    Open Circuit, short circuit, over voltage, over temperature, voltage transients, high VSWR

  • MIL-STD-810F

    Transceiver meets Dust, Shock and Vibration

  • 125 W radio case

    Deployed: 680 mm x 690 mm x 410 mm (Transit: 978 mm x 625 mm x 378 mm) 0.23 m3 shipping cube (NGTTM Voice and Data)
    Deployed: 680 mm x 690 mm x 410 mm (Transit: 978 mm x 625 mm x 467 mm) 0.29 m3 shipping cube (NGTTM with C4i Interoperability)

  • 500/1000 W power amplifier cases

    Deployed: 680 mm x 690 mm x 490 mm (Transit: 978 mm x 625 mm x 378 mm) 0.23 m3 shipping cube

  • Power supply (PSU) cases

    Deployed: 680 mm x 690 mm x 490 mm (Transit: 978 mm x 625 mm x 378 mm) 0.23 m3 shipping cube

  • Weight (transit)

    125 W: 48 kg (with Radio, Modem, Console, PSU)
    500 W Power Amplifier: 52 kg
    500 W PSU: 43 kg
    1000 W Power Amplifier: 60 kg
    1000 W PSU: 46 kg


Options :

  • Encryption

    CES-128 bit Encryptor, AES-256 bit Encryptor and MELPe 1200/2400 bps digital voice or Type 1 (US Government only)

  • ALE

    FED-STD-1045 ALE/CALMTM, MIL-STD-188-141B

  • Email

    UUPlusTM supports COTS email clients

  • GPS tracking

    InternavTM CHF GPS tracking software

  • Modems

    3212, 3012

  • Tactical deployment

    Tuned Dipole Antenna, 125 W
    Semi-delta, Full-delta
    Multi-wire Broadband Dipole
