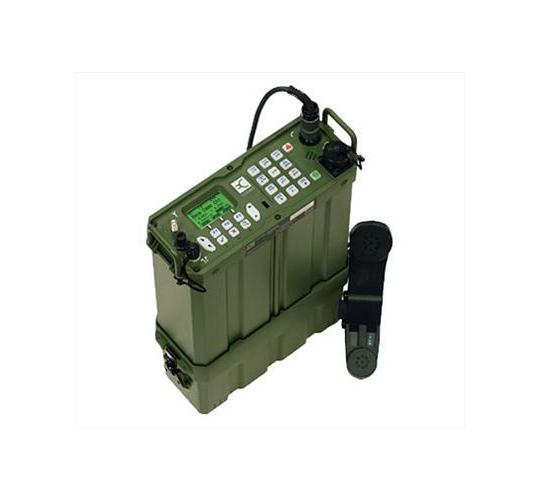

2110M Transceiver (Military)

Codan's military 2110M Manpack transceivers provide uncompromising value for armed forces around the world. With compliance to MIL-STD-188-141B ALE, FED-STD-1045 ALE, interoperability with commercial and other military grade radios, frequency hopping, and voice encryption, the 2110M is a true manpack radio.

We've gone to great lengths to ensure our manpacks are extremely light, rugged, comfortable to carry, and packed with easy to use features. They are ideal for all types of terrain and weather conditions. With a range of antennas, backpacks and battery types, the 2110M Manpack can be configured to suit your mission.

Key Features :

  • Built to last

    Codan’s 2110M manpack transceivers are the most rugged radios we’ve ever built and comply with the toughest environmental standards including MIL-STD-810F. The radio and battery compartment are completely waterproofed and can be fully immersed.

  • Worldwide standards

    Codan’s 2110M manpack transceivers comply with a large number of international standards. These include CE and FCC radio type approvals, MIL-STD-810F environmental standards, FED-STD-1045 ALE, and MIL-STD-188-141B ALE.

  • Security and frequency hopping

    Codan’s 2110M Manpack can be fitted with Internal Frequency Hopping and Voice Encryptor options to secure your communications and ensure your operation won’t be jeopardised by a third party.

  • Long battery life

    Codan’s 2110M manpack transceivers deliver the lowest current consumption available. So you can operate continuously on a single charge for several days, up to 50 hours, without the need to lug around extra batteries.

  • Intelligent battery management

    Our intelligent Battery Management System monitors and displays the battery capacity and condition, and also protects the battery from being overcharged.

  • Communications made easy

    The 2110M manpack transceivers share a common friendly user-interface with our innovative NGT series, so you can minimise training time and expenses. They operate seamlessly with our NGT series, plus other commercial and military grade radios.

  • Secure your investment

    With Codan’s Voice Encryptor option, the 2110M manpack transceivers use SAFE voice encryption to ensure sensitive information is communicated in confidence. You can extend the 2110M manpack’s capabilities via future software upgrades ensuring you’ll get the most from your investment.

Product Specifications
  • Frequency range

    Transmit: 1.6 to 30 MHz
    Receive: 0.25 to 30 MHz

  • Frequency hopping

    Hop Rate 6/12/25 hops per second
    Hopping Plans 31 user selectable
    Hopping Keys 128-bit user programmable
    Synchronisation Internal Encryption Synchronisation Unit

  • Channel capacity

    With MIL-STD-188-141B ALE option: 600 channels, 20 networks
    Without MIL-STD-188-141B ALE option: 400 channels, 10 networks

  • Scanning

    Configurable up to 8 channels per second

  • Frequency stability

    ±0.5 ppm

  • Power source

    12 V DC (10.8–15 V operational)

  • Modes

    Voice/Data, USB/LSB (J3E), AM (H3E), AFSK (J2A), CW (JIA)

  • Operating temperature

    –30°C to +60°C

  • Size

    Transceiver 245 mm W x 250 mm D x 92 mm H, with battery 245 mm W x 350 mm D x 92 mm H

  • Weight

    Transceiver 2.6 kg (5.3 kg with 13 Ah NiMH battery)

  • Environmental

    Per MIL-STD-810F including shock, vibration, humidity, immersion
    (1 hr at 1 m), altitude, fungus, salt fog, sand and dust, blowing dust, and rough handling

  • Cooling

    Convection from case

  • Transceiver conformance

    Exceeds or meets requirements of AS/NZS 4770:2000, CE, NTIA and FCC
    Per MIL-STD-188-141B (required for ALE)

  • Interfaces

    Serial RS232

  • RF input/output impedance

    Whip/long wire antenna via internal Automatic Antenna Tuner, or
    50 Ω nominal

  • A/F Power and A/F Distortion

    Waterproof Internal speaker; 0.5 W into 8 Ω, 10% THD
    External speaker on GPIO connector; 1W into 4 Ω, 10% THD

  • Approximate battery life

    ~50 hr (13 Ah NiMH), voice 10% duty cycle

  • Antenna tuning

    2.5 s typical first tune (fully automatic), 50ms for memory recall
    Last tune stored for 100 frequencies


Options :

  • Voice Encryptor
  • MIL-STD-188-141B ALE (JITC Certified)
  • Morse Key
  • Narrow Band Filter (500 Hz)
  • Wide Band Filter (3700 Hz)

Accessories :

  • Antennas
  • Backpacks
  • Batteries
  • Chargers
  • Handset H-250/U
  • NGT System Programmer CD
  • Cables and adaptors
