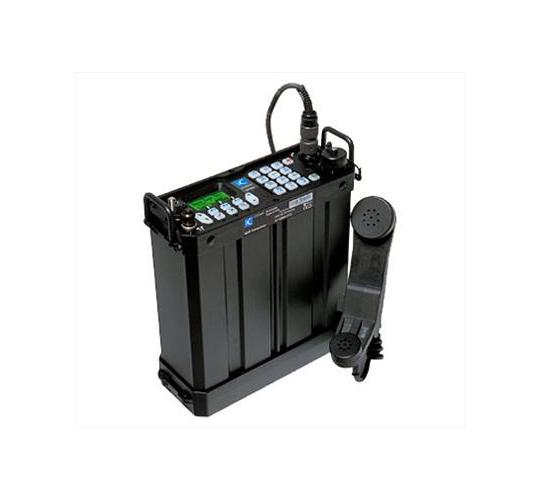

2110v Transceiver (Voice only)

Codan’s 2110 Voice Manpack transceiver is the perfect solution for your portable long distance HF voice communications needs.

We’ve gone to great lengths to ensure our manpacks are extremely light, rugged, comfortable to carry, and packed with easy to use features. They are ideal for all types of terrain and weather conditions. With a range of antennas, backpacks and battery types, the 2110 series can be configured to suit your mission.

Key Features :

  • Built to last

    Codan’s 2110 series are the most rugged radios we’ve ever built and comply with the toughest environmental standards including MIL-STD-810F. The radio and battery compartment are completely waterproofed and can be fully immersed.

  • Worldwide standards

    Codan’s 2110 series are the most rugged radios we’ve ever built and comply with the toughest environmental standards including MIL-STD-810F. The radio and battery compartment are completely waterproofed and can be fully immersed.

  • Long battery life

    Codan’s 2110 series manpacks deliver the lowest current consumption available. So you can operate continuously on a single charge for several days, up to 50 hours, without the need to lug around extra batteries.

  • Intelligent battery management

    Our intelligent Battery Management System monitors and displays the battery capacity and condition, and also protects the battery from being overcharged.

  • Communications made easy

    The 2110 series transceiver share a common friendly user-interface with our innovative NGT series, so you can minimise training time and expenses. They operate seamlessly with our NGT series, plus other commercial and military grade radios.

  • Secure your investment

    With Codan’s Voice Encryptor option, the 2110 series manpacks use SAFE voice encryption to ensure sensitive information is communicated in confidence. You can extend the 2110 manpack’s capabilities via future software upgrades ensuring you’ll get the most from your investment.

Product Specifications
  • Frequency range

    Transmit: 1.6 to 30 MHz
    Receive: 0.25 to 30 MHz

  • Channel capacity

    400 channels, 10 networks

  • Scanning

    Configurable up to 8 channels per second

  • Frequency stability

    ±1.5 ppm (–30°C to +60°C)

  • Power source

    12 V DC (10.8–15 V operational)

  • Modes

    Voice, USB/LSB (J3E), AM (H3E), AFSK (J2A), CW (JIA)

  • Operating temperature

    –30°C to +60°C

  • Size

    Transceiver 245 mm W x 250 mm D x 92 mm H, with battery 245 mm W x 350 mm D x 92 mm H

  • Weight

    Transceiver 2.6 kg (4.7 kg with 8 Ah NiMH battery)

  • Environmental

    Per MIL-STD-810F including shock, vibration, humidity, immersion
    (1 hr at 1 m), altitude, fungus, salt fog, sand and dust, blowing dust, and rough handling

  • Cooling

    Convection from case

  • Transceiver conformance

    Exceeds or meets requirements of AS/NZS 4770:2000, CE, NTIA and FCC

  • Interfaces

    Serial RS232

  • RF input/output impedance

    Whip/long wire antenna via internal Automatic Antenna Tuner, or
    50 Ω nominal

  • A/F Power and A/F Distortion

    Internal speaker; 0.5 W into 8 Ω, 10% THD

  • Approximate battery life

    ~50 hr (13 Ah NiMH), voice 10% duty cycle

  • Antenna tuning

    2.5 s typical first tune (fully automatic), 50ms for memory recall
    Last tune stored for 100 frequencies


Options :

  • FED-STD-1045 ALE/CALM
  • Voice Encryptor
  • GPS Interface
  • High Stability Receiver
  • MIL-STD-188-141B ALE
  • Morse Key
  • Narrow Band Filter (500 Hz)
  • Wide Band Filter (2700 Hz)

Accessories :

  • Antennas
  • Backpacks
  • Batteries
  • Chargers
  • Handset H-250/U
  • NGT System Programmer CD
  • Cables and adaptors
