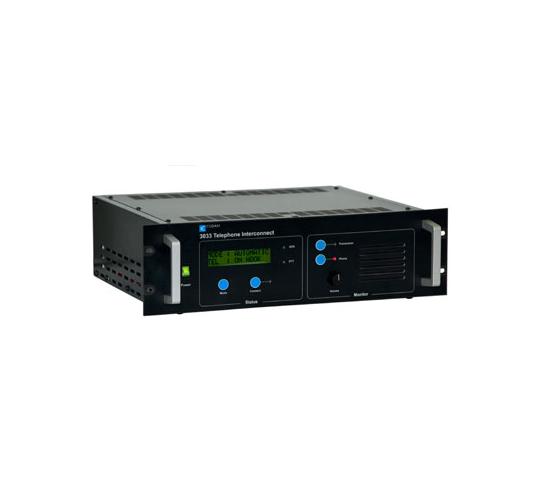

3033 Telephone Interconnect

Codan's 3033 Telephone Interconnect makes calls between HF radios and telephones simple. It enables you to link into the public switched telephone network from your HF transceiver to make or receive telephone calls. With an interactive telephone voice prompting system and Codan’s intuitive radio interface, calls between HF radios and telephones have never been so easy.

Key Features :

  • Easy to use

    With the 3033, making telephone calls from your HF Radio is easy. You can use predetermined speed dial numbers or manually dial any telephone number from your HF transceiver.

  • Multilingual support

    The 3033's voice prompting system is capable of using more than one set of pre-recorded messages.

  • Simple remote management

    Remote management is quick and easy with sophisticated call logging and easy access to the configuration and billing information stored within the 3033.

  • User access and call barring

    For added flexibility, you can apply different levels of user access to the 3033. Access levels can be assigned individually or in groups and are configured by the administrator.

  • Secure communication

    Codan offers frequency hopping and voice encryption options to ensure your communication kept private.

Product Specifications
  • Supply voltage

    13.5 V DC nominal
    9 to 16 V DC fully operational

  • Current consumption

    1.3 A nominal @ 13.5 V DC in normal operating conditions

  • Environment

    Ambient temperature: –30 to +60°C (–22 to +140°F)
    Relative humidity: 0 to 95%, non-condensing

  • Network interface

    Loop-start (FXO)

  • Impedance

    Software configurable

  • Loop current

    20 mA

  • Ring detection

    14.5 to 55 Hz, 50 V AC

  • Signalling

    Line voltage drop, reverse polarity, ringing, on hook, off hook, flash

  • Audio characteristics

    Sampling device: 8 bit, ADC to DAC sampling @ 8 kHz
    Frequency response: 300 to 3400 Hz
    Transmit/receive range: User-programmable software gain

  • Signal processing characteristics

    Cut-through DTMF detection: 0 to 9, *, #
    Caller identification: On-hook/off-hook detection

  • Size

    483 mm W x 388 mm D x 133 mm H
    (19 in W x 13.3 in D x 3RU (5.25) in H)

  • Weight

    10.6 kg (23.4 lb)

  • Compliance

    A-tick, CE, FCC
