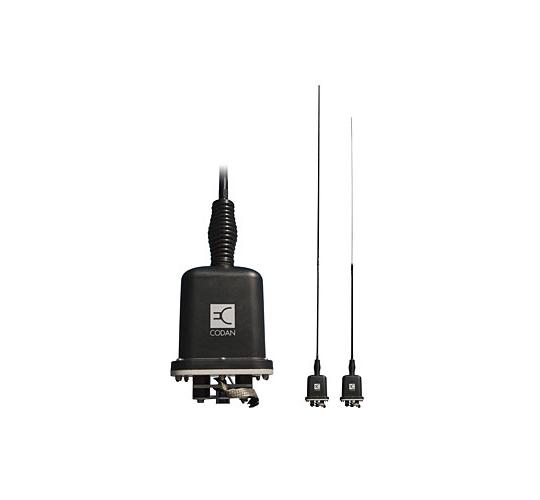

3040 Automatic Whip Antenna
  • 2 to 30 MHZ
  • 125 W PE
  • Fast tuning 1 sec average
  • Memory tune < 150 m
  • Supports ALE and frequency hopping mode
  • Integral Active Wideband Receiver Amplifier for scanning
  • MIL-STD-810F (Temperature, Immersion, Vibration, Dust)
  • Designed to MIL-STD-461

The 3040 Automatic Whip Antenna is a Low Profile alternative to the highly successful 9350, and operates with both the NGT™ and 2110 family of radios. With a 70% reduction in height and almost half the weight of a 9350, the 3040 provides flexibility to installations.

Product Specifications

  • Frequency range

    2.5 to 30 MHz (2.4 m Whip), 2 to 15 MHz (4.4 m NVIS)

  • Power rating

    125 W PEP (voice and data)

  • Power consumption

    Typically 0.4 A, less than 0.8 A max

  • Input impedance

    50 Ω

  • VSWR

    Typically ≤1.5:1

  • Tuning speed

    New frequency 1 sec average, memory tune <150 ms

  • Memory channels

    Unlimited

  • Mechanical Temperature rating

    –40°C to 70°C, 95% humidity

  • DC operating range

    11 to 15.5 V DC (12 V DC nominal)

  • Protection

    Open circuit, short circuit, over voltage, over
    temperature, voltage transients, high VSWR

  • MIL-STD 810F

    Temperature, Immersion, Dust, Vibration

  • MIL-STD-461

    Designed to standard

  • Dimensions

    145 mm W x 165 mm D x 240 mm H
    (excludes spring and whip)

  • Weight

    3.15 kg including spring and whip

  • Mounting

    M14 stud, 40 mm long

  • Colour

    Black
