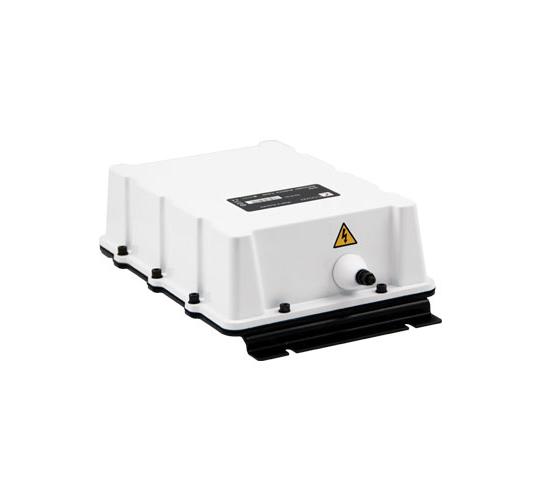

Codan Products

• Frequency range

  3 to 30 MHz (1.6 m lightweight whip)
  2 to 30 MHz (2.4 m whip)
  2 to 15 MHz (4 m NVIS)

• Power rating

  125 W PEP

• Power consumption

  Typically 400 mA, less than 0.8 A maximum

• Input impedance

  50 Ω

• VSWR

  Typically ≤1.5:1

• Tuning Speed

  New frequency <1 second average, memory tune <150 ms

• Memory channels

  Unlimited (unique non-linear memory allocation)

• DC operating range

  Codan transceiver (12 V nominal)

Mechanical :

• Temperature

  –30 to +60°C (–22 to +140°F), 95% humidity

• Protection

  Open Circuit, Short Circuit, Over Voltage, Over Temperature, Voltage Transients,
  High VSWR

• Environmental

  MIL-STD-810G (Dust, Vibration)
  Immersion to IP68

• EMC

  Designed to MIL-STD-461

• Dimensions

  300 mm L x 250 m W x 95 mm H (11.8 in L x 9.8 in W x 3.7 in H )

• Weight

  2.4 kg (5.3 lbs)

• Colour

  White or olive drab green

Interface :

• RF connector

  N-type socket

• Control

  6 pin bayonet (MIL spec)

Accessories :

• Antennas

  1.6 m (5.3 ft) Stainless Steel with 0.8 m (2.6 ft) Riser
  1.6 m (5.3 ft) Fibreglass with 0.8 m (2.6 ft) Riser
  3.6 m (11.8 ft) NVIS whip

• Antenna bases

  Flange mount
  Flange mount bracket
  Single hole mount
  Spring

• Mounting hardware

  Vehicle shock mount
  Installation kit

• Cables

  2, 6 10 and 20 m (6.6, 19.7, 32.8 and 65.6 ft) RF coaxial cables
  2, 6 10 and 20 m (6.6, 19.7, 32.8 and 65.6 ft) control cables
