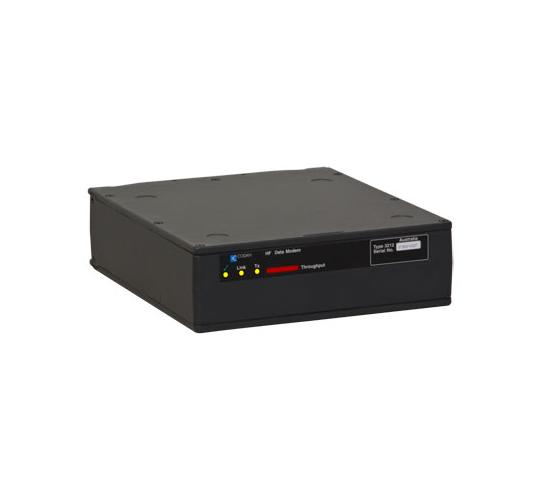

3212 HF Data Modem
  • High Performance

    The 3212 HF Data Modem uses waveforms derived from Military Standard (MIL-STD) Waveforms.

  • Reliable Email over HF

    With Codan’s UUPlus Email for HF software, the 3212 provides an easy and reliable means to send email over HF from remote areas.

  • Advanced Automatic Link Establishment (ALE) Compatibility

    When used with FED-STD-188-141B ALE, the 3212 HF Data Modem and transceiver establish the link by automatically selecting the best channel, link quality and data rate.

  • Ethernet & RS232 Interfaces

    Modem control is provided through a configurable Ethernet port using either a fixed IP or DHCP addressing, or an RS232 port.

Codan's 3212 HF Data Modem ensures you get connected anywhere by providing reliable, cost-effective, high speed mobile data communications in remote areas where little or no telecommunications infrastructure exists.

The 3212 is based on the latest modem technology with an error-free data rate of up to 7200 bps uncompressed, typically four times faster than comparable competitors modems.

Product Specifications
  • Supported Waveforms

    STANAG 4539 (modified), Codan 9001/9002/3012

  • Built-In-Test

    Power-on self test, selectable internal audio and digital loop-back

  • Receive Audio

    600 Ω balanced, –30 to +3 dBm, Automatic Gain Control

  • Transmit Audio

    600 Ω Balanced, –30 to +10 dBm selectable

  • Keyline (PTT)

    Open Collector, active low

  • Power source

    13.5 V DC nominal (250 mA typical supply current)
    10.5 to 15 V DC operational, reverse polarity and over-voltage protected to ±50 V

  • Cooling

    Passive convection

  • Temperature

    0°C to +55°C operating (–40°C to +60°C storage)
    32 to 131°F operating (–40 to +140°F storage)

  • Size and weight

    210 mm W x 240 mm D x 65 mm H (8.3” W x 9.4” D x 2.6” H)
    2 kg (4.4 lb)

  • Compliance

    CE, FCC and C-Tick

Options :

  • Cables to suit NGT or 2110 series Transceivers
  • Vehicle Mounting Cradle
  • UUPlus email software
