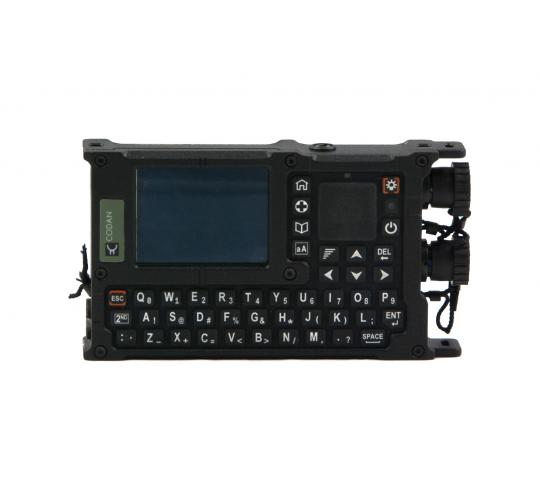

3511 Tactical Data Terminal
  • Radio compatibility

    Operates with Codan 2110/M & Envoy™ series Transceivers with RM50 Data Modem and Codan NGT™ Transceivers with RM50e

  • Soldier mobility

    Very small form factor, lightweight construction, convenient carry pouch

  • Military UI

    Designed for military operations, minimal
    training required

  • Outdoor display

    Sunlight-readable display, NVG compatible, automatic ‘night-mode’

  • Full keyboard

    QWERTY keyboard with Menu, Home and Emergency buttons

  • Field hardened

    Ultra-rugged, watertight metal enclosure designed to withstand extreme conditions

  • GPS and compass: Security

    Positioning and 3-axis compass
    Encryption of all over-the-air and data-at-rest information

  • Military standards: Rugged connectors

    STANAG 4538, 4539, 5066, MIL-STD-810F, 461E Waterproof, scoop-proof, grit-resistant, keyed military connectors

The 3511 Tactical Field Data Terminal is a small ultra- rugged NATO standardised communication PDA.

It is used for secure Tactical Chat messaging, Quickfill Military Messages, email, and situational awareness over CODAN™ 2110/M, NGTTM and Envoy™ series Transceivers.

Product Specifications
  • High-speed data mode

    Selective repeat ARQ Protocol
    2400 bps—16 channels QPSK modulation

  • Link establishment mode

    Proprietary link establishment 80 baud CHIRP

  • Data compression

    In-built data compression

  • Rate of data transfer

    Up to 6000 bps (compressed)
    Up to 1475 bps (uncompressed)

  • Transceiver interface

    9600 baud RS232
    TR.29 based AT port

  • Primary power

    13.5 V DC nominal (250 mA maximum current consumption)
    10.5–15 V DC operating range

  • Temperature

    0°C to +55°C operating (–40°C to +60°C storage)

  • Size and weight

    210 mm W x 240 mm D x 65 mm H (including rear connectors);
    1.8 kg


Options :

  • Codan NGT AR/NGT ASR/NGT SR with Option F
  • FED-STD-1045 ALE/CALM
  • Codan NGT Remote Control System

Accessories :

  • Vehicle mounting cradle
  • Cables and adaptors
  • UUPlus Email for HF Client Software
  • Uuplus Email for HF Server Software
  • Security

    DES 56-bit key data-at-rest; AES-256 bit over-the-air; Zeroise function

  • HF modem

    CODAN™ RM50 or RM50e supporting MIL-STD-188-110A/B, STANAG 4539 (QAM), 75 to 9600 bps in 3 kHz Bandwidth, STANAG 4538 LDL Burst Waveforms

  • ARQ

    STANAG 5066 ARQ & CFTP email client; STANAG 4538 (LDL ARQ); receive-only (EMCON) support

  • ALE 3G

    STANAG 4538 Fast Link Set-up (FLSU), Linking Protection, Occupancy Detection

  • BIT

    BIT (Built-In-Test), Continuous Error Detection

  • Memory

    2 GB secure FLASH

  • Keyboard

    QWERTY layout with backlighting; dedicated backlight control; built-in ambient light sensor; Zeroise key sequence

  • Display

    2.4” Colour OLED, QVGA resolution (320 x 240), 18-bit colour depth; status LED for ‘message waiting’ and charge indication

  • Red accessory port

    USB Host: USB Host Port: 2.0 Full Speed (12 MB per second), 5 V (100 mA) output
    Ethernet Port: 10/100 Base T (IEEE 802.3U compatible), embedded TCP/IP Stack, Auto Cross-over Detection

  • Black radio port

    Serial Port: Transceiver Control and Data
    Power: 6 to 36 V DC input for operation and battery charging, 0.3 to 2.2 Watt

  • Size & Weight

    148 mm W x 82 mm D x 28 mm H, 490 g including batteries

  • Colour

    Olive Drab (RAL6022) or Black (RAL9004)

  • Power

    Battery: 2 x Standard AA-size cells or 2 x NiMH AA-size, internal charger
    External: 6 to 36 V DC (designed for MIL-STD-1275B)

  • Battery life

    12 hrs (operational profile dependant)

  • Temperature

    –40°C to +65°C (operation), –55°C to +85°C (storage)

  • Immersion

    MIL-STD-810F Method 512.4 Proc 1, (1 hour at 1m)

  • Environmental

    MIL-STD-810F Humidity, Shock, Vibration

  • EMC / EMI

    Designed to meet MIL-STD-461E

  • Safety

    Safety IEC/EN 60950
