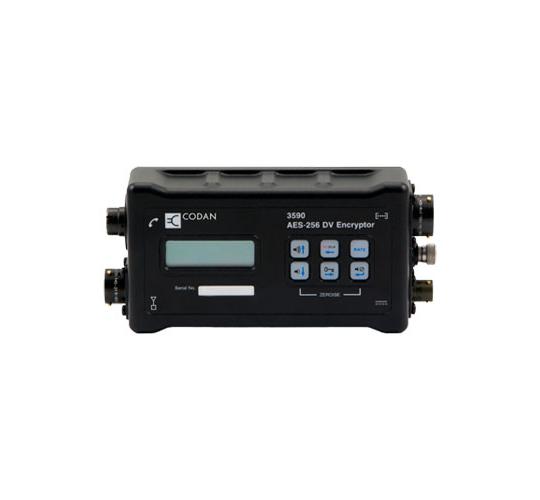

3590 AES-256 DV Encryptor

Codan’s 3590 provides a high grade 256-Bit encryption with a MELPe digital vocoder supporting 1200/2400 b/s data rates, and it enables Commanders to bridge the interoperability gap between multiple vendor fielded networks. The units compact size supports multiple deployment scenarios from manpack to mobile to base platforms.

Key Features :

  • Stores up to 256 keys
  • STANAG 4591 MELPe Vocoder - 1200/2400 b/s and auto-bauding
  • HF/VHF/UHF support
  • Compatible with 2110/M and NGT™ family of transceivers
  • Multiple platforms supported including intercom systems
  • Remote controllable
  • Auto-bypass with power loss
  • 10 to 36 V operation
  • Flange-mountable option
  • MIL-STD-810G environmental
  • 3 year warranty
Product Specifications

  • Operational Modes

    Off/Clear/Secure
    Remote control capability

  • Display

    White back-lit

  • Audio interface

    Low level
    Line level (600 ohms)

  • Transceiver interface

    Input 10 mV to 30 V

  • Supply voltage

    10 to 36 V DC (12/28 V DC nominal)

  • Supply current

    <15 mA @ 13.8 V DC Clear mode, backlight off
    80 mA @ 13.8 V DC typical, secure mode

  • Temperature

    –30 to +60°C

  • Environmental

    Designed to MIL-STD-810G fro Immersion (1 m), Shock,
    Vibration, Blowing Dust, Salt Fog, Humidity, and Drop

  • Connectors

    Military grade

  • Dimensions

    Non-flanged version: 174 mm W x 81 mm D x 40 mm H
    Flanged version: 174 mm W x 99 mm D x 40 mm H

  • Weight

    0.6 kg
