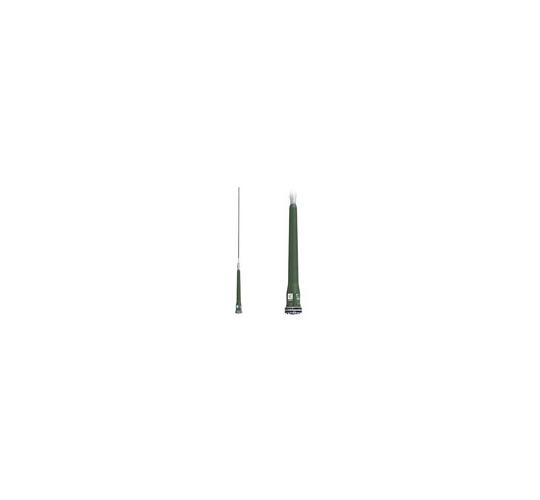

9350M Automatic Tuning Whip Antenna
  • Rugged design

    The 9350M antenna is constructed to withstand and operate in severe environments and temperatures. Its main section is constructed of fibreglass reinforced nylon and it exceeds the shock and vibrations requirements for MIL-STD-810.

  • Fast, optimum tuning

    Typically, the 9350M takes only a few seconds to tune to any frequency.

  • High radiation efficiency

    The 9350M antenna has a comparably high rate of radiation efficiency, rated for maximum voice power of 125 watts PEP.

  • Continuous tuning

    The whip antenna provides continuous tuning to any required frequency over the transmit/receive operating range of 2–30 MHz.

  • Two whips supplied

    Two whip top sections are provided with the 9350M antenna – the primary whip encased in polyurethane covered fiberglass, and a shorter backup whip made from stainless steel.

  • Sensitive to weak signals

    When in Scan or Free Tune Receiver mode, a broadband amplifier is activated. This makes the antenna sensitive to even the weakest signals over the entire frequency range.

Codan’s internationally acclaimed 9350M Automatic Tuning Whip Antenna is designed for use with frequency hopping M series radios in mobile operations, where transceivers have a large channel capacity.

Product Specifications
  • Frequency range

    Primary whip top: Transmit operation: 2–30 MHz
    Secondary whip top: Transmit operation: 2.5–30 MHz
    Receive-only: 250 kHz – 30 MHz
    (Scan mode/Free Tune Receiver mode)

  • Power rating

    125 watts PEP (voice)

  • Power consumption

    Static: 150 mA
    Tuning: 1 A (12 V DC nominal —supplied
    from the transceiver)

  • Input impedance

    50 Ω: VSWR typically 1.5:1

  • Operating temperature

    –40 to +60°C

  • Tuning speed

    Typically 2 seconds

  • Size and weight

    Primary whip: 2.47 m ; 5.8 kg

Options :

  • 9350 Spring
  • 9350 Fibreglass Whip (1.6 m)
  • 9350 Tapered Stainless Steel Whip (1.2 and 1.65 m)
  • NVIS Kit
  • Cables
