Code 463 Broadband
  • Durability

    The C463 series antenna is made from lightweight, weatherproof materials that thrive in extreme conditions and withstand wind speeds greater than 200 km/h.

  • Performance

    The antenna performs optimally over a wide HF range, which means an antenna tuner is not needed.

  • Easy to install

    The antenna is supplied completely assembled and ready for erection with an inverted “V” mounting arm and detailed erection instructions.

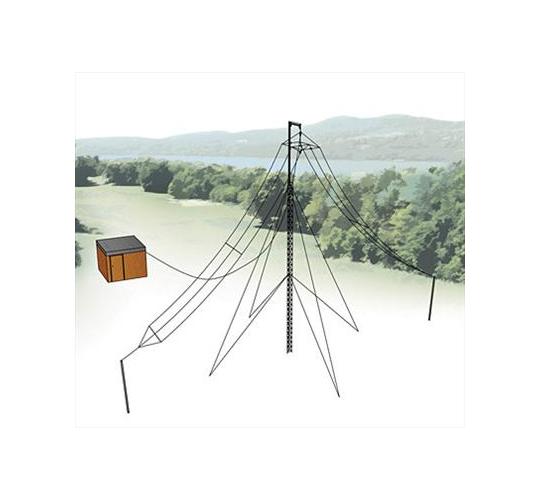

The code 463 series Multi-wire Broadband Dipole Antenna is a 3-wire terminated folded dipole antenna designed for broadband operation in fixed stations. It is available in multiple power levels up to 1 kW and can be mounted horizontally between two support systems, or as an inverted "V" using a single central support mast.

Product Specifications
  • Frequency

    2–30 MHz

  • Power rating

    250 W PEP (125 W avg)
    500 W PEP (300 W avg)
    1 kW PEP (600W avg)

  • Nominal impedance

    50 Ω

  • VSWR

    Generally less than 2:1

  • RF connector type


  • Length

    28 m (91.9 ft) insulator to insulator

  • Width

    1.3m(4.27 ft)

  • Minimum mast spacing

    30 m (98.5 ft)

  • Recommended mast height

    10–12 m (32.8–39.4 ft)

  • Wind rating

    200 km/h (125 ml/h)

  • Packed weight

    6.7 kg

  • Carton dimensions

    1435 mmx 165 mm x 165 mm

  • Mounting hardware

    Halyard, pullies and mounting arm supplied

Options :

  • Coaxial cables
  • Lighting protection kit
  • Masts 12 m and 15 m
  • Stub masts
