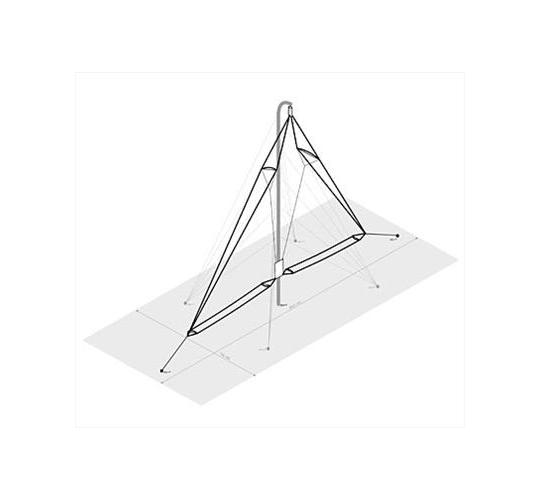

Delta Antenna

  • Performance

    The Delta Antenna offers high performance over short to medium distances, and exhibits an omnidirectional pattern. The Delta has been designed to provide continuous coverage throughout its entire frequency range (3–30MHz) making it an ideal choice for a base station antenna.

  • Easy to install

    The Delta Antenna can be supplied with or without a support mast and comes complete ready to install on site.

The Delta Antenna is a high performance, omni-directional, broadband antenna that is suited to base-to-base or base-to-mobile communication over short to medium distances.

Product Specifications

  • Frequency

    3–30 MHz

  • Impedance

    50 Ω (nominal)

  • VSWR

    Less than 2:1

  • Power rating

    200 W PEP (100 W Avg)

  • Radiator elements

    Marine grade stainless steel

  • Packed weight

    30 kg (antenna only)
    222 kg (antenna including mast)

  • Carton dimensions

    Antenna only (1 carton): 910 x 285 x 205 mm
    Antenna & mast (3 cartons): 960 x 630 x 270 mm
    1110 x 1110 x 390mm
    4500 x 1570 x 140mm

  • Mast height

    15 m

  • Antenna width

    46 m

  • Guy radius

    10 m

  • Overall height

    16 m (including gibbet)

  • Footprint

    50 x 18 m

  • Wind rating

    Up to 180 kph (112 mph) in clear air, subject to mast footing and anchoring
