Codan Products

• Channels

  Up to 1000 simplex or semi-duplex

• Scanning

  Up to 20 scan groups
  Simultaneous scanning for Selcall (ALE / CCIR) and voice Dwell time 125 ms to 9.9 s, adjustable

• Contacts List

  Up to 500 entries

• SDR processing architecture

  DSP, 456 MHz, 32-bit
  FPGA, 500,000 gate
  MCU, ARM9, 300 MHz 32-bit

• Interfaces

  USB (via Handset or Console)
  Serial RS232 (supports NMEA-0183 GPS)
  Ethernet (TCP/IP, supports remote control)
  Auxiliary GPIO (audio in / out, PTT, RS232) on EnvoyTM X2 model

• Audio response

  Less than 3 dB variation from 300 Hz to 3 kHz (with optional 2.7 kHz filter)

• Compliance

  CE, NTIA, FCC, AS/NZS 4770:2000, AS/NZS 4582:1999 (pending)

• Temperature range

  –30 to +60°C

• Humidity

  95% RH maximum, non-condensing

Electrical :

• Operating range
• Supply current
• Protection

RF :

• Frequency range

  Transmit:

  1.6 to 30 MHz

• Receive:

  250 kHz to 30 MHz

• Frequency Stability:


  ±0.5 ppm from –30°C to +60°C

• Modes

  Single sideband (J3E), USB, LSB, AM (H3E), CW (J2A), AFSK (J2B), F1B (FSK) (software controlled filter bandwidth)

• Output power

  125 W PEP ±1 dB (two-tone or voice), user-programmable (low / medium / high)

• Duty cycle

  100% Voice / Data with optional Fan

• RF output impedance

  50 Ω

• Filter bandwidths

  2.4 kHz standard (500 Hz, 2.7 kHz optional)
  Wideband software programmable filters available on EnvoyTM X2 model

• Transmitter specifications

  Spurious and harmonic emissions:


  Better than <64 dB below PEP

• Intermodulation products:


  33 dB below PEP

• Carrier suppression:


  Better than 60 dB below PEP

• Sideband suppression:

  70 dB below PEP

• Receiver specifications

  Sensitivity:

  0.12 μV, –125 dBm for 10 dB SINAD

• Selectivity:

  >70 dB at –1 kHz and +4 kHz ref SCF USB

• Blocking:

  >95 dB at ±50 kHz

• Image rejection:

  >70 dB

• Spurious response:

  >70 dB

• Intermodulation:

  Unwanted signal >92 dB below desired signal

• Switching speed

  <25 ms (Tx:Rx or Rx:Tx)

Mechanical :

• Size

  2210 RF Unit:

  210 x 270 x 65 mm (8.3 x 10.6 x 2.6 in)

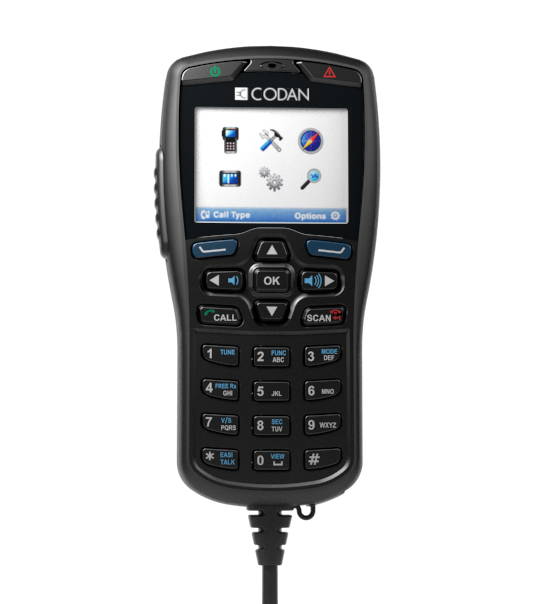

• 2220/1 Handset:

  75 x 32 x 151 mm (5.9 x 1.3 x 3.0 in)

• 2230 Console:

  190 x 228 x 79 mm (7.5 x 9.0 x 3.1 in)

• Weight

  2210 RF Unit:

  2.8 kg (6.2 lb)

• 2220/1 Handset:

  0.3 kg (0.7 oz)

• 2230 Console:

  1.1 kg (2.4 lb)

• Paint finish

  2210 RF Unit:

  Powder-coated matt black

• Ingress Protection

  IP54, MIL-STD-810G method 510.5

• Environmental standards

  MIL-STD-810G (Drop, Dust, Shock, Vibration), IEC 60945:2002 (Vibration)

Options :

• Data Modem

  CHIRP / QPSK, 2400 bps (up to 6000 bps using in-built compression)

• Encryption

  CES-128, 97 x programmable 16-digit keys, 4-digit PIN AES-256, 256 x programmable 256-bit keys

• Vocoder

  MELPe (1200 / 2400 bps)

• Software applications

  TPS-3250 Transceiver Programming Software InternavTM GPS Tracking
  UUPlusTM Email

• Language support

  English and Spanish language user interface and programming software (TPS-3250)

Accessories

• Desk Console
• 3040 Automatic Whip Antenna
• 3020 AC Mains Supplies
• 500 W / 1 kW High Power Amplifiers
• 3033 Telephone Interconnect
• Base Station Antenna
• Vehicle Installation Kit
• Vehicle dashmount Handset Cradle
