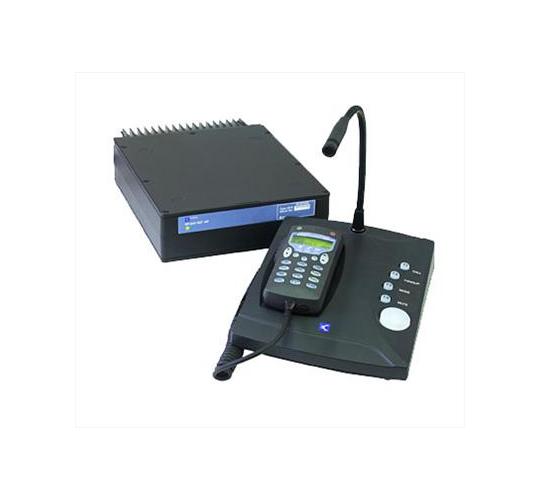

NGT AR (Australia)

The NGT AR is a complete solution to your advanced system needs, including remote-control, split-site, high power communications, or base and vehicle applications. While incorporating superb features like Easitalk®, advanced calling capabilities, and an innovative handset, the NGT AR provides an extensive range of options including ALE, voice encryption, and GPS.

With its unique emergency call features, the NGT AR is essential for organisations working or traveling in the remote Australian outback.

Key Features

  • Innovative handset

    Managing and operating your networks has never been easier or more efficient. With Codan’s simple yet advanced handset you can access and program all features, functions and hotkeys.

  • RFDS Emergency tone call

    When safety is at risk and every second counts, you can use the NGT AR to automatically send a distress signal to the Royal Flying Doctor Service (RFDS) – at the press of a single button.

  • Easy installation

    Codan’s NGT AR is small, convenient to mount, and easy to install in fixed and mobile environments.

  • Easitalk®

    Easitalk® is a Digital Signal Processor that minimises interference and reduces noise to provide the clearest communications of any available HF transceiver.

  • GPS and computer control

    Using a computer and an RS232 port, you can control an NGT AR to help with paging, GPS tracking and logging, and other automated applications.

  • Voice Encryption

    The optional Voice Encryptor provides communication security (COMSEC), so you can communicate sensitive information in confidence and without complicated setup procedures.

  • Fax, data, email and internet

    The NGT AR is designed for both voice and data applications. With Codan’s optional UUPlus® email software, setting up a highly efficient email network is simple using Codan’s 3012 (data) or 9001 (fax and data) modems.

  • Calling facilities

    The NGT AR comes standard with selective calling and optionally supports phone calling, and remote diagnostics and configuration.

  • ALE

    ALE is available as an option to automatically select the best channel, at any time of the day and from the moment the transceiver is switched on.

  • Rugged and reliable

    As with all Codan equipment, the NGT AR series transceiver is a rugged and reliable unit that thrives in extreme conditions, and comes with a full three year warranty

Product Specifications
  • Frequency range

    Transmit: 1.6–30 MHz
    Receive: 0.25 to 30 MHz

  • Channel capacity

    400 channels

  • Operating mode

    Single sideband (J3E, USB)

  • Transmitting power

    100 watts PEP

  • Primary voltage

    12 V DC nominal, negative earth

  • Primary power

    Receive: 1 A (no signal)
    Transmit: 9 A (J3E voice)
    10–14 A (J3E two-tone)

  • Temperature

    –30°C to +60°C

  • Size and weight

    2010 RF Unit: 210 mm W 270 mm D x 65 mm H; 3.3 kg 2020 Handset: 65 mm W x 35 mm D x 130 mm H; 0.3 kg 2030 Junction Box: 135 mm W x 117 mm D x 38 mm H; 0.4 kg

  • ALE link quality data

    24 hours of up to 100 stations and 100 channels using a total of 72675 discrete sets of LQA data

  • ALE link quality data resolution

    Local: 8 bits SINAD, 8 bits BER
    Remote: 5 bits SINAD, 5 bits BER

  • Computer interface

    RS232, 300–19200 baud

  • GPS interface

    NMEA-0183 (4800 baud, RS232)

  • Shock and vibration

    Meets or exceeds MIL-STD-810E

Options :

  • H3E AM transmission
  • Emergency call
  • Fan for continuous data transmission
  • GPS Interface
