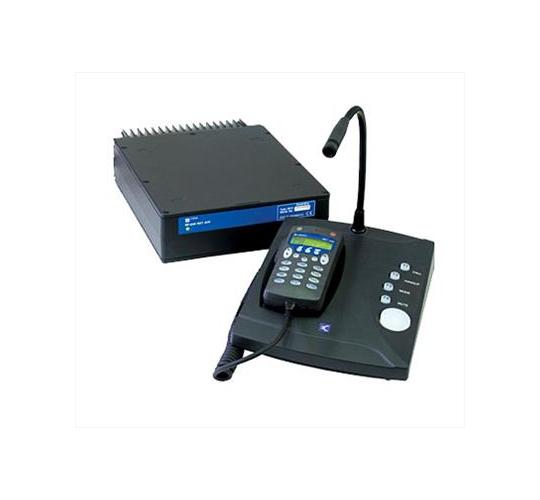

NGT ASR (Advanced systems)

The NGT ASR is a complete solution to your advanced system needs, and is ideal for disaster relief and homeland security. While incorporating superb features like Easitalk®, advanced calling capabilities, and an innovative handset, the NGT ASR is JITC-certified, US FCC and NTIA approved, and complies with MIL-STD-188-141B ALE interoperability. An extensive range of options including ALE, voice encryption, and GPS are available.

Key Features :

  • Testing and protection

    Codan NGT ASR transceivers undergo rigorous testing and comply with the highest industry standards, including MIL-STD-810F, US FCC and NTIA requirements.

  • Innovative handset

    Managing and operating your networks has never been easier or more efficient. With Codan’s simple yet advanced handset you can access and program all features, functions and hotkeys.

  • Emergency selcall

    When safety is at risk and every second counts, you can use the NGT ASR to automatically send a distress signal to pre-selected stations – at the press of a single button.

  • Easy installation

    Codan’s NGT ASR is small, convenient to mount, and easy to install in fixed and mobile environments.

  • Smart monitoring

    While the radio is muted you can monitor a variety of channels, and calls can be received on any of the scanned channels.

  • Easitalk®

    Easitalk® is a Digital Signal Processor that minimises interference and reduces noise to provide the clearest communications of any available HF transceiver.

  • Computer control

    Using a computer and an RS232 port, you can control an NGT ASR to help with paging, GPS tracking and logging, and other automated applications.

  • Voice Encryption

    The optional Voice Encryptor provides communication security (COMSEC), so you can communicate sensitive information in confidence and without complicated setup procedures.

  • Fax, data, email and internet

    The NGT ASR is designed for both voice and data applications. With Codan’s optional UUPlus® email software, setting up a highly efficient email network is simple using Codan’s 3012 (data) or 9001 (fax and data) modems.

  • Calling facilities

    The NGT ASR comes standard with selective calling and optionally supports phone calling, and remote diagnostics and configuration.

  • ALE

    The NGT ASR JITC certified for interoperability with MIL-STD-188-141B and FED-STD-1045 ALE systems.

Product Specifications
  • Frequency range

    Transmit: 1.6 to 30 MHz
    Receive: 0.25 to 30 MHz

  • Channel capacity

    600 channels

  • Operating mode

    Single sideband (J3E, USB, LSB, AM, H3E)

  • Frequency stability

    ±0.3 ppm (–30°C to +60°C)

  • Primary output

    Selectable 125 W PEP / 12 W PEP

  • Primary voltage

    12 V DC nominal, negative earth

  • Primary power

    Receive: 1 A (no signal)
    Transmit: 6 A (J3E voice)
    10–14 A (J3E two-tone)

  • Transceiver sensitivity

    -125 dBm (10 dB SINAD)

  • Spurious and harmonic emissions

    Better than 65 dB below PEP

  • Audio Bandwidth

    Voice: 300 to 2700 kHz
    Data: 300 to 3300 kHz

  • Temperature

    –30°C to +60°C

  • Size and weight

    2010 RF Unit: 8.3 " W x 10.6 " D x 2.6 " H; 7.3 pounds
    2020 Handset: 2.6 “ W x 1.4 “ D x 5.1 “ H; 0.7 pounds
    2030 Junction Box: 5.3 “ W x 4.6 “ D x 1.5 “ H; 0.9 pounds

  • Dust

    MIL-STD-810F method 510.4

  • Vibration

    MIL-STD-810F method 514.5

  • Shock

    MIL-STD-810F method 516.5

  • ALE

    MIL-STD-188-141B, FED-STD-1045

  • Computer interface

    RS232, 300 to 38400 baud

  • GPS interface

    NMEA-0183 (4800 baud, RS232)

  • Compliance


Options :

  • H3E AM transmission
  • Voice Encryptor
  • Fan for continuous data transmission
  • GPS Interface
  • VP116 interface

Accessories :

  • GPS receiver
  • Mains transceiver supply
  • High power systems (500 W & 1 kW)
  • Data modem
  • Split-site & remote control
  • Telephone interconnect
  • Mobile automatic tuning whip antenna
  • Fixed station antennas, antenna tuner and grounding unit
  • Installation hardware, mobile mounting cradles and rack units
  • Morse key
