NGT MR (Military)

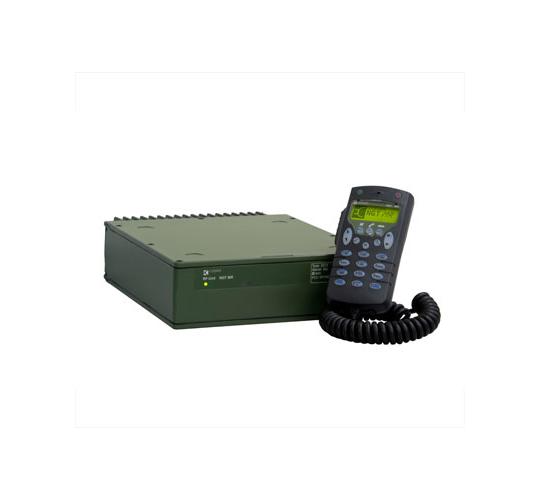

The NGT™ MR Transceiver provides tactical High Frequency (HF) voice and data communications for military and security users worldwide. It is more affordable than manpack based solutions while delivering the same critical HF needs such as reliable, secure and interoperable communications.

Codan offers a range of accessories including telephone interconnects, crosspatches, high power amplifiers, and antenna tuners, as well as options such as voice encryption, frequency hopping (ECCM), ISB for high speed (19K2) data communications, and GPS positioning.

Key Features :

  • 125 W output power
  • Base and mobile applications
  • MIL-STD-810F
  • Voice encryption
  • Frequency hopping (ECCM)
  • Innovative user interface
  • Excellent on-air performance
  • MIL-STD-188-141B ALE (JITC certified)
  • ISB option for high speed (19K2) data communications
Product Specifications

  • Channel capacity

    400 channels
    600 channels when MIL-STD-188-141B ALE is enabled

  • Frequency range

    Transmit: 1.6 to 30 MHz
    Receive: 0.25 to 30 MHz

  • Operating mode

    Single sideband (J3E) USB and LSB or switched USB/LSB, AM, H3E (optional), CW, FSK, ISB (optional)

  • Transmitted power

    High Power: 125 W PEP / 100 W PEP (optional)
    Low Power: 10 W PEP

  • Spurious and harmonic emissions

    Better than 65 dB below PEP

  • Receiver sensitivity

    Frequency: 0.25 to 30 MHz
    RF amp off: 1.25 μV PD, –105 dBm

    Frequency: 0.25 to 30 MHz
    RF amp on: 0.12 μV PD, –125 dBm

  • Selectivity

    Greater than 70 dB at –1 kHz and +4 kHz reference suppressed carrier frequency USB
    Pass Bands: –6 dB, 300 to 2600 Hz
    Ripple: –2 dB, 500 to 2500 Hz

  • Frequency stability

    ±0.3 ppm (–30°C to +60°C)

  • Supply voltage

    12 V DC nominal, negative earth
    Normal operating range: 10.8 to 15.5 V DC
    Reverse polarity protection provided

  • Overvoltage protection

    Shutdown at 16 V DC (nominal) for duration of overvoltage

  • Frequency hopping

    Hop Rate: 6.25/12.5/25.0 hops per second, user programmable
    Security: 128 bit
    Hop Plans: 32
    Key Code Length: 18 digits
    Pin Length: 10 digits

  • Voice encryption

    Security: 128 bits
    Key Code length: 18 digits
    PIN length: 4 digits

  • Size

    2012 RF Unit (excluding vehicle mounting frame):
    210 mm W x 270 mm D x 65 mm H
    2020 Handset:
    65 mm W x 35 mm D x 130 mm H
    Handset and Speaker Connector:
    135 mm W x 117 mm D x 38 mm H

  • Weight

    2012 RF Unit (excluding vehicle mounting frame):
    3.3 kg
    2020 Handset:
    0.3 kg

  • Sealing

    2012 RF Unit: IP52
    2020 Handset: IP41
    Handset and Speaker Connector: IP41

  • Environmental

    MIL-STD-810F
    Dust: method 510.4
    Shock: method 514.5
    Vibration: method 516.5


Options :

  • MIL-STD-188-141B ALE (JITC Compliant)
  • Voice Encryption module
  • Frequency Hopping
  • ISB for high speed data (19K2) data communications
  • GPS Positioning
  • Wideband Filter
  • Cooling Fan (recommended with Data)
  • Desktop Console

Accessories :

  • Antennas

    Semi-delta Broadband
    Folded Dipole Broadband
    9350M Mobile Antenna
    3041 Antenna Tuner

  • Power Supplies

    3020 Transceiver Supply
    Battery Backup and Solar Supplies
    24 V / 12 V Regulator

  • 3033 Telephone Interconnect

  • 3112 HF Data Modem

  • 500 W and 1 kW Power Amplifiers

  • Vehicle Mounting Hardware and Cabling Kit

Download PDF Documents For This Product
