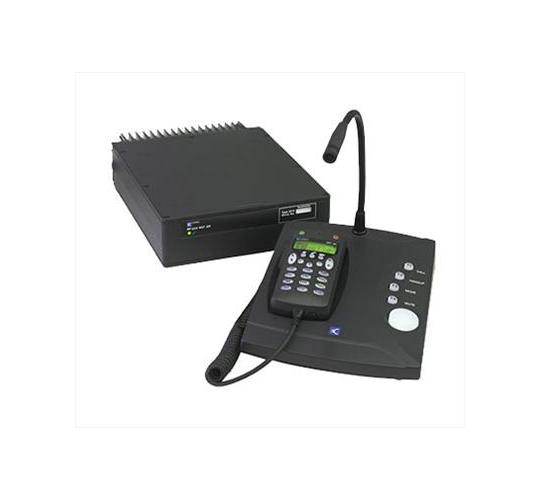

NGT SR (Systems)

The NGT SR is a complete solution to your advanced system needs, including remote-control, split-site, high power communications, or base and vehicle applications. While incorporating superb features like Easitalk®, advanced calling capabilities, and an innovative handset, the NGT SR also sports Multiple control points. An extensive range of options including ALE, voice encryption, and GPS are available.

Key Features :

  • Multiple control points

    Multiple control points provide you with the flexibility to simultaneously connect other devices, such as data modems and telephone interconnects.

  • Innovative handset

    Managing and operating your networks has never been easier or more efficient. With Codan’s simple yet advanced handset you can access and program all features, functions and hotkeys.

  • Emergency selcall

    When safety is at risk and every second counts, you can use the NGT SR to automatically send a distress signal to pre-selected stations – at the press of a single button.

  • Easy installation

    Codan’s NGT SR is small, convenient to mount, and easy to install in fixed and mobile environments.

  • Smart monitoring

    While the radio is muted you can monitor a variety of channels, and calls can be received on any of the scanned channels.

  • Easitalk®

    Easitalk® is a Digital Signal Processor that minimises interference and reduces noise to provide the clearest communications of any available HF transceiver.

  • Computer control

    Using a computer and an RS232 port, you can control an NGT SR to help with paging, GPS tracking and logging, and other automated applications.

  • Voice Encryption

    The optional Voice Encryptor provides communication security (COMSEC), so you can communicate sensitive information in confidence and without complicated setup procedures.

  • Fax, data, email and internet

    The NGT SR is designed for both voice and data applications. With Codan’s optional UUPlus® email software, setting up a highly efficient email network is simple using Codan’s 3012 (data) or 9001 (fax and data) modems.

  • Calling facilities

    The NGT SR comes standard with selective calling and optionally supports phone calling, and remote diagnostics and configuration.

  • ALE

    ALE is available as an option to automatically select the best channel, at any time of the day and from the moment the transceiver is switched on.

Product Specifications
  • Frequency range

    Transmit: 1.6 to 30 MHz
    Receive: 0.25 to 30 MHz

  • Channel capacity

    400 channels

  • Operating mode

    Single sideband (J3E, USB, LSB, AM)

  • Frequency stability

    ±0.3 ppm (–30°C to +60°C)

  • Primary voltage

    12 V DC nominal, negative earth

  • Primary power

    Receive: 1 A (no signal)
    Transmit: 6 A (J3E voice)
    10–14 A (J3E two-tone)

  • Transceiver sensitivity

    –125 dBm (10 dB SINAD)

  • Spurious and harmonic emissions

    Better than 65 dB below PEP

  • Temperature

    –30°C to +60°C

  • Size and weight

    2010 RF Unit: 210 mm W 270 mm D x 65 mm H; 3.3 kg
    2020 Handset: 65 mm W x 35 mm D x 130 mm H; 0.3 kg
    2030 Junction Box: 135 mm W x 117 mm D x 38 mm H; 0.4 kg

  • ALE link quality data

    24 hours of up to 100 stations and 100 channels using a total of 72675 discrete sets of LQA data

  • ALE link quality data resolution

    Local: 8 bits SINAD, 8 bits BER
    Remote: 5 bits SINAD, 5 bits BER

  • Dust

    MIL-STD-810F method 510.4

  • Vibration

    MIL-STD-810F method 514.5

  • Shock

    MIL-STD-810F method 516.5

  • Computer interface

    RS232, 300 to 19200 baud

  • GPS interface

    NMEA-0183 (4800 baud, RS232)

Options :

  • Voice Encryptor
  • Fan for continuous data transmission
  • GPS Interface
  • Narrow Band Filter (500 Hz)
  • Wide Band Filter (2700 Hz)
