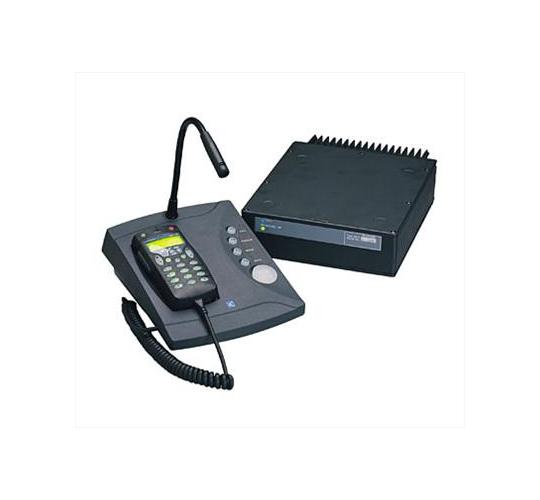

NGT VR (Voice only)

Codan's NGT VR is the ideal solution to meet your voice communication needs for base and vehicle applications – all in a single cost effective unit. It’s easy to use with an innovative, mobile phone-like handset and one-button shortcuts. Plus with Codan’s Easitalk®, you’re sure to enjoy clear communications.

Key Features :

  • Innovative handset

    Managing and operating your networks has never been easier or more efficient. With Codan’s simple yet advanced handset you can access and program all features, functions and hotkeys.

  • Emergency selcall

    When safety is at risk and every second counts, you can use the NGT VR to automatically send a distress signal to pre-selected stations – at the press of a single button.

  • Multiple channels

    The NGT VR provides up to 20 channels.

  • Easy installation

    Codan’s NGT VR is small, convenient to mount, and easy to install in fixed and mobile environments.

  • Smart monitoring

    While the radio is muted you can monitor a variety of channels, and calls can be received on any of the scanned channels.

  • High dynamic range Rx

    The high dynamic range of the NGT receiver provides better reception in harsh conditions.

  • Easitalk®

    Easitalk® is a Digital Signal Processor that minimises interference and reduces noise to provide the clearest communications of any available HF transceiver.

  • Calling facilities

    The NGT VR comes standard with selective calling and optionally supports phone calling, and remote diagnostics and configuration.

  • ALE

    ALE is available as an option to automatically select the best channel, at any time of the day and from the moment the transceiver is switched on.

  • Rugged and reliable

    As with all Codan equipment, the NGT VR series transceiver is a rugged and reliable unit that thrives in extreme conditions, and comes with a full three year warranty.

Product Specifications
  • Frequency range

    Transmit: 1.6–30 MHz
    Receive: 0.25 to 30 MHz

  • Channel capacity

    20 channels

  • Operating mode

    Single sideband (J3E, USB, LSB, AM)

  • Frequency stability

    ±0.3 ppm (–30°C to +60°C)

  • Primary voltage

    12 V DC nominal, negative earth

  • Primary power

    Receive: 0.7 A (no signal)
    Transmit: 6 A (J3E voice)
    10–14 A (J3E two-tone)

  • Transceiver sensitivity

    0.12 μV, –125 dBm (10 dB SINAD)

  • Transmitting power

    125 watts PEP

  • Spurious and harmonic emissions

    Better than 65 dB below PEP

  • Temperature

    –30°C to +60°C

  • Size and weight

    2011 RF Unit: 210 mm W 270 mm D x 65 mm H; 3.3 kg
    2020 Handset: 65 mm W x 35 mm D x 130 mm H; 0.3 kg

  • ALE link quality data

    24 hours of up to 100 stations and 100 channels using a total of 72675 discrete sets of LQA data

  • ALE link quality data resolution

    Local: 8 bits SINAD, 8 bits BER
    Remote: 5 bits SINAD, 5 bits BER

  • Dust

    MIL-STD-810F method 510.4

  • Vibration

    MIL-STD-810F method 514.5

  • Shock

    MIL-STD-810F method 516.5


Options :

  • D-STD-1045 ALE/CALM
  • NGT Desk Console for base station use
  • Voice Encryptor Remote
  • Diagnostics
  • Phone call
