Integration Hardware: FLEXware PV


The OutBack Power Technologies FLEXware PV combiner series sets the new standard for PV balance-of-system hardware. Ideal for both small or large systems, the FLEXware PV8 and FLEXware PV12 accommodates the overcurrent protection requirements of your application. From 150VDC breakers for low voltage PV systems, to 600VDC fuse holders for high voltage PV systems, the FLEXware PV Combiner series handles it all.


Designed to survive in outdoor environments, the rainproof, UL type 3R powder coated aluminum chassis can be mounted on a wall, sloped roof or pole. The unique angled negative terminal bus bar design makes wiring fast and easy without the larger output conductors blocking access to the smaller input terminals. Dual output lug terminals are included for up to 2/0 AWG conductors. The tinted flame-retardant polycarbonate deadfront panel creates a clean appearance while preventing accidental contact with the live terminals and is easily removable during installation.


The FLEXware PV Combiner makes it easy to take your installation to the next level.


Diagram


Holds up to eight OutBack Power Technologies DIN mounted breakers for PV array configurations of 12 to 72 VDC systems with a maximum open circuit voltage of 150 VDC or use six OutBack Power Technologies OBFH "touch safe" type fuse holders for high voltage systems with a maximum open circuit voltage of 600 VDC

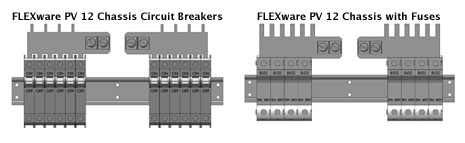

Diagram


Holds up to twelve OutBack Power Technologies DIN mounted breakers for PV array configurations of 12 to 72 VDC systems with a maximum open circuit voltage of 150 VDC or use eight OutBack Power Technologies OBFH "touch safe" type fuse holders for high voltage systems with a maximum open circuit voltage of 600 VDC


Contact Sigma Communications Ltd. for this Product.


Technical Specifications

Model:FLEXware PV

Description: Outdoor rated powder-coated aluminum PV array combiner box

Includes: Enclosure, dual combining bus bars, one terminal bus bar, two #1/0 AWG set-screw compression type box lug terminals and one #1/0 AWG ground lug

FWPV-8 FWPV-12
Enclosure Material Powder coated aluminum with stainless steel hardware Powder coated aluminum with stainless steel hardware
Mounting Options Vertical wall mount, pole mount or sloped roof mount to 14 degrees incline (3 in 12 roof pitch) Vertical wall mount, pole mount or sloped roof mount to 14 degrees incline (3 in 12 roof pitch)
Enclosure Rating Outdoor Rainproof, UL Type 3R Outdoor Rainproof, UL Type 3R
Enclosure Security Padlock hole in chassis and cover for up to 3/8 inch pad lock Padlock hole in chassis and cover for up to 3/8 inch pad lock
Output Terminals #14 - 2/0 AWG (2.08 - 67.43 mm2) Two box lug terminals included #14 - 2/0 AWG (2.08 - 67.43 mm2) Two box lug terminals included
Number of separate circuits One Circuit One or Two Circuits
Number of 150VDC breakers up to 8 up to 12 (two groups of six)
Number of 600VDC fuse holders up to 6 up to 8 (two groups of four)
Input Terminal 150VDC Breakers / #14 - 6 AWG (2.08 - 13.3 mm2) 600VDC Fuse / #14 - 10 AWG (2.08 - 5.26 mm2) 150VDC Breakers / #14 - 6 AWG (2.08 - 13.3 mm2) 600VDC Fuse / #14 - 10 AWG (2.08 - 5.26 mm2)
DimensionsUnit (H x W x D)
Shipping (H x W x L)		 15.2 x 9.2 x 3.9" (38.7 x 23.3 x 9.9 cm)
4.3 x 13 x 19" (10.9 x 24.1 x 48.3 cm)		 15.2 x 12.7 x 3.9" (38.7 x 32.2 x 9.9 cm)
4.3 x 9.5 x 19" (10.9 x 24.1 x 48.3 cm)
WeightUnit
Shipping		 4.4 lbs (2.0 kg)
5.5 lbs (2.5 kg)		 5.9 lbs (2.7 kg)
7.4 lbs (3.3 kg)

OutBack DC DIN Mount Breakers

DIN rail mount breakers are hydraulic-magnetic type and are not affected by high ambient temperatures.

Model Current Rating Voltage Rating* Terminals Width
OBB-1-125VDC-DIN 1 Amp 125VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-2-150VDC-DIN 2 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-3-150VDC-DIN 3 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-4-150VDC-DIN 4 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-5-150VDC-DIN 5 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-6-150VDC-DIN 6 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-8-150VDC-DIN 8 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-9-150VDC-DIN 9 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-8-150VDC-DIN 8 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-10-150VDC-DIN 10 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-15-150VDC-DIN 15 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-20-150VDC-DIN 20 Amp 125VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-30-125VDC-DIN 30 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-50-150VDC-DIN 50 Amp 125VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)
OBB-60-125VDC-DIN 60 Amp 150VDC #14 to 2 AWG clamp terminals 0.5" (13 mm)

* Approved for maximum VOC of 15O VDC by ETL for PV array applications only.

OutBack High Voltage DIN Mount Fuse Holders and Fuses

Fuse holders are DIN rail mount with #8 AWG set-screw type compression terminals. Touch-safe design and not rated for load make or load break usage. Maximum of eight fuseholders in one PSPV enclosure.

Model Description Current Rating Voltage Rating Width
OBF-6-600VDC Fuse 6 Amp 600VDC N/A
OBF-10-600VDC Fuse 10 Amp 600VDC N/A
OBF-15-600VDC Fuse 15 Amp 600VDC N/A
OBFH-30-600VDC-DIN Fuse Holder 30 Amp 600VDC 0.7 " (18 mm)

Terminal Bus Bars

Used for adding more wire terminations or for isolating multiple positive/negative circuits. All TBB models have three #1/0 to 14 AWG and eight #6 to 14 AWG screw type compression terminals, which means no ring lugs are required. Available with black, white, red, blue and brown insulators. All required TBBs are included with the AC Input-Output-Bypass Assemblies.

Model Description Terminals
TBB-GROUND Ground/Neutral terminal bus bar and mounting screws (no insulators) Three #1/0 to 14 AWG and Eight #6 to 14 AWG screw type compression
TBB-BLACK Bus bar with black insulators and mounting screws Three #1/0 to 14 AWG and Eight #6 to 14 AWG screw type compression terminals
TBB-BLUE Bus bar with blue insulators and mounting screws Three #1/0 to 14 AWG and Eight #6 to 14 AWG screw type compression terminals
TBB-RED Bus bar with red insulators and mounting screws Three #1/0 to 14 AWG and Eight #6 to 14 AWG screw type compression terminals
TBB-WHITE Bus bar with white insulators and mounting screws Three #1/0 to 14 AWG and Eight #6 to 14 AWG screw type compression terminals
TBB-BROWN Bus bar with brown insulators and mounting screws Three #1/0 to 14 AWG and Eight #6 to 14 AWG screw type compression terminals
