FLEXware 250 AC Input-Output-Bypass Assemblies
Field installable kit with color coded wire, all required ring
terminals and sliding interlock plate
FW-IOB-S-120VAC
Single inverter Input-Output-Bypass for FW250 only 120VAC output 60 Amp
7.2 kW. Includes three 60A 120VAC single pole PANEL mount breakers.
FW-IOB-S-230VAC
Single inverter Input-Output-Bypass for FW250 only - 230VAC
output 30 Amp 6.9 kW. Includes three 30A 230VAC single pole PANEL mount breakers.
FW-IOB-S-230VAC
Single inverter Input-Output-Bypass for FW250 only - 230VAC output 30 Amp
6.9 kW. Includes three 30A 230VAC single pole PANEL mount breakers.
FLEXware 500 AC Input-Output-Bypass Assemblies
Field installable kit with color coded wire, all required terminal bus
bars and sliding interlock plate
FW-IOB-D-120/240VAC
Dual inverter Input-Output-Bypass for FW500 - 120/240VAC output 60 Amp
14.4 kW. Includes six 60A 120VAC single pole DIN mount breakers.
FW-IOB-D-120VAC
Dual inverter Input-Output-Bypass for
FW500 - 120VAC output 120 Amp 14.4 kW. Includes four 60A 120VAC single pole
DIN mount breakers and one 60A 120VAC dual pole DIN mount breaker.
FW-IOB-D-230VAC
Dual inverter Input-Output-Bypass for FW500 - 230VAC
output 60 Amp 13.8 kW. Includes six 30A 230VAC single pole DIN mount breakers.
FW-IOB-D-230VAC
Dual inverter Input-Output-Bypass for FW500 - 230VAC output 60 Amp 13.8 kW.
Includes six 30A 230VAC single pole DIN mount breakers.
FLEXware 1000 AC Input-Output-Bypass Assemblies
Field installable kit with color coded wire, all required terminal bus
bars and sliding interlock plate
FW-IOB-Q-120/240VAC
Quad inverter Input-Output-Bypass for FW1000 - 120/240VAC output 120 Amp
28.8 kW. Includes eight 60A 120VAC single pole DIN mount breakers and two
60A 120VAC dual pole DIN mount breakers.
FW-IOB-Q-230VAC
Quad inverter Input-Output-Bypass for FW1000 - 230VAC output 120 Amp
27.6 kW. Includes twelve 30A 230VAC single pole DIN mount breakers.
FW-IOB-T-120/208VAC
Triple inverter Input-Output-Bypass for FW1000 - 120/208VAC output 60 Amp
21.6 kW. Includes nine 60A 120VAC single pole DIN mount breakers.
FW-IOB-T-230/400VAC
Triple inverter Input-Output-Bypass for FW1000 - 230/400VAC output 30 Amp
20.7 kW. Includes nine 30A 230VAC single pole DIN mount breakers.
FLEXware Mounting Plate
Includes inverter and enclosure mounting screws

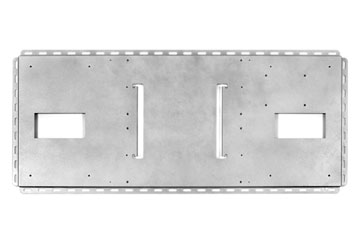

FW-MP
Mounting Plate for FW500 or FW1000 system. Includes enclosure and inverter
mounting screws. FW500 requires one mounting plate / FW1000 requires two
mounting plates.
Mounting Brackets
Includes brackets, screws and conduit bushings

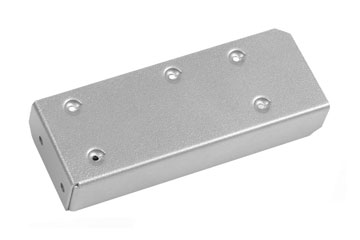

FW-CCB
MX Charge Controller mounting bracket for one side mounted on FW500 or
FW1000 DC enclosures - with mounting screws.

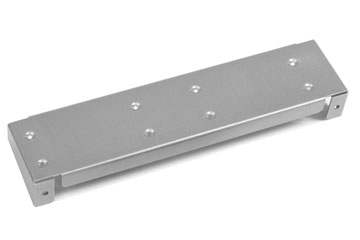

FW-CCB2
MX Charge Controller mounting bracket for two side mounted on FX500 or
FW1000 DC enclosures - with mounting screws.
FW-CCB2-T
MX Charge Controller mounting bracket for two
top mounted FW500 or FW1000 DC enclosures - with mounting screws and
flexible conduit.
Conduit Adapters
Required for FW500 and FW1000 systems. Not used with FW250 systems.
FW-ACA

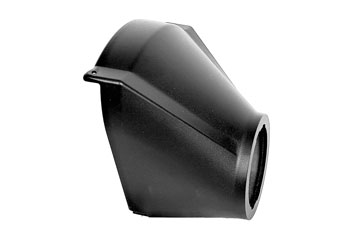

AC Conduit Adapter for all FX Series Inverter/Chargers to AC enclosure.
DCA
DC Conduit Adapter for all FX Series Inverter/Chargers to DC enclosure.

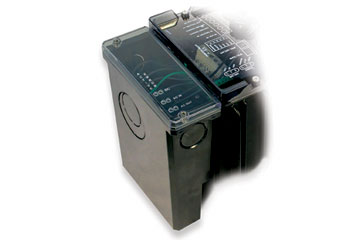

FLEXware Surge Protector
Transient overvoltage suppression for FX Series Inverter/Charger
FW-SP-250
For use in FLEXware 250
FW-SP-ACA
For use in FLEXware ACA
FW-SP-R
Replacement board for FLEXware 250 or FLEXware ACA
Autotransformer
For step-up, step-down and balancing applications.

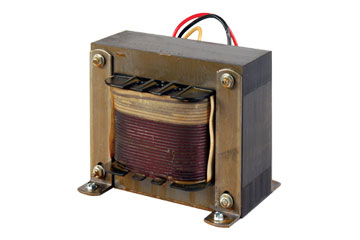

FW-X240
Autotransformer 4 kVA 120/240VAC 60Hz with 25 Amp
dual pole breaker for mounting inside of FW500 or FW1000 AC enclosures.
DC Cable Assemblies
UL listed NEC compliant highly flexible.
FW-Cable175-15R
175 Amp 2/0 AWG DC cable 15 inches (380 mm) long with ring terminals on
both ends with red heat shrink.
FW-Cable175-36R
175 Amp 2/0 AWG DC cable 36 inches (915 mm) long with ring terminals on
both ends with red heat shrink.
FW-Cable175-36W
175 Amp 2/0 AWG DC cable 36 inches (915 mm) long with ring terminals on
both ends with white heat shrink.
FW-Cable250-15R
250 Amp 4/0 AWG DC cable 15 inches (380 mm) long with ring terminals on
both ends with red heat shrink.
FW-Cable250-36R
250 Amp 4/0 AWG DC cable 36 inches (915 mm) long with ring terminals on
both ends with red heat shrink.
FW-Cable250-36W
250 Amp 4/0 AWG DC cable 36 inches (915 mm) long with ring terminals on
both ends with white heat shrink.
PV Combiner Box

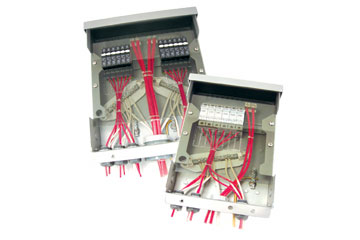

FLEXware PV
The OutBack Power Technologies FLEXware PV combiner series sets the standard for
PV balance-of-system hardware. The FLEXware PV8 and FLEXware PV12
accommodate the overcurrent protection requirements of your application.
From 150VDC breakers for low voltage PV systems, to 600VDC fuse holders
for high voltage PV systems, the FLEXware PV Combiner series is designed
to survive outdoor environments. Its rainproof, UL type 3R powder coated
aluminum chassis can be mounted on a wall, sloped roof or pole. The unique
angled negative terminal bus bar design makes wiring fast and easy without
the larger output conductors blocking access to the smaller input
terminals. Dual output lug terminals are included for up to 2/0 AWG
conductors. The FLEXware PV Combiner series handles it all.
PV Array Breakers
DIN rail mount with set-screw compression terminals. Mount 0.5"
(13 mm) wide - #14 to 2 AWG (1.62 mm to 6.54 mm diameter) clamp terminals

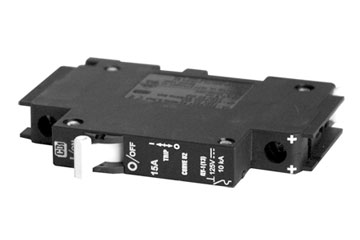

OBB-1-125VDC-DIN
1 Amp 125VDC single pole DIN
OBB-2-150VDC-DIN
2 Amp 150VDC single pole DIN
OBB-3-150VDC-DIN
3 Amp 150VDC single pole DIN
OBB-4-150VDC-DIN
4 Amp 150VDC single pole DIN
OBB-5-150VDC-DIN
5 Amp 150VDC single pole DIN
OBB-6-150VDC-DIN
6 Amp 150VDC single pole DIN
OBB-8-150VDC-DIN
8 Amp 150VDC single pole DIN
OBB-9-150VDC-DIN
9 Amp 150VDC single pole DIN
OBB-10-150VDC-DIN
10 Amp 150VDC single pole DIN
OBB-15-150VDC-DIN
15 Amp 150VDC single pole DIN
OBB-20-125VDC-DIN
20 Amp 125VDC single pole DIN
OBB-30-125VDC-DIN
30 Amp 125VDC single pole DIN
OBB-50-125VDC-DIN
50 Amp 125VDC single pole DIN
OBB-60-125VDC-DIN
60 Amp 125VDC single pole DIN
High Voltage DC Fuses
For use in FLEXware PV with high voltage systems
OBF-6-600VDC
Fuse 6 Amp 600VDC
OBF-10-600VDC
Fuse 10 Amp 600VDC
OBF-15-600VDC
Fuse 15 Amp 600VDC

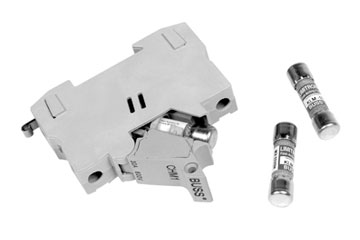

OBFH-30-600VDC-DIN
Fuse holder 30 Amp maximum 600VDC DIN mount.
