Outback Power Products

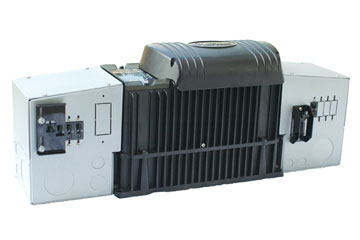

FLEXware 250 System

For applications with a single OutBack FX Series Inverter/Charger and one MX Series MPPT Charge Controller. No mounting plate required. Powder-coated aluminum with stainless steel hardware.

FW250 DC
AC breaker enclosure - secures directly to either end of an FX Series Inverter/Charger. Includes ground bus bar and DC breaker handle guard. Holds up to eight 1 to 80 Amp, one 175 or 250 Amp panel mount breaker and a GFCI AC outlet (not included). Does not use the DCA or ACA for connection to an FX Series Inverter/Charger. (DC current shunt not included).

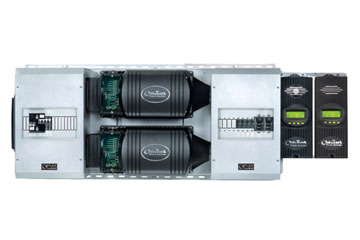

FLEXware 500 System

For applications with one or two OutBack FX Series Inverter/Chargers and one or two MX Series MPPT Charge controllers. Uses one FW-MP mounting plate. Powder-coated aluminum with stainless steel hardware.

FW500-DC
DC breaker enclosure - fits at the DC side of one or two FX Series Inverter/Chargers. Includes ground bus bar, 500 Amp DC shunt assembly with negative TBB breaker mounting screws Ð holds up to eight 1 to 80 Amp, three 100 or 125 Amp and two 175 or 250 Amp panel mount breakers (not included). Requires optional DCAs for connection of each FX Series Inverter/Charger.

FW500-AC
AC breaker enclosure - fits at the AC side of one or two FX Series Inverter/Chargers. Includes ground bus bar and DIN mounting bracket for up to sixteen DIN type breakers (not included) and a GFCI AC outlet (not included). Requires optional FW-ACAs for connection of each FX Series Inverter/Charger.

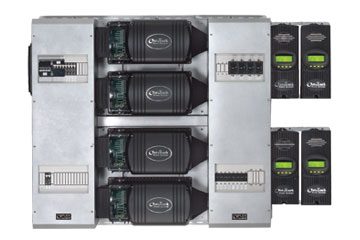

FLEXware 1000 Power System

For applications with three or four OutBack FX Series Inverter/Chargers and up to four MX Series MPPT Charge Controllers. Uses two FW-MP mounting plates. Powder-coated aluminum with stainless steel hardware.

FW1000-DC
DC breaker enclosure - fits at the DC side of up to four FX Series Inverter/Chargers. Includes ground bus bar, 1000 Amp DC shunt assembly with negative TBB breaker mounting screws - holds up to eleven 1 to 80 Amp, nine 100 or 125 Amp and six 175 or 250 Amp panel mount breakers (not included). Requires optional DCAs for connection of each FX Series Inverter/Charger.

FW1000-AC
AC breaker enclosure - fits at the AC side of up to four FX Series Inverter/Chargers. Includes ground bus bar and two DIN mounting brackets for up to thirty-two DIN type breakers (not included) and two GFCI AC outlets (not included). Requires optional ACAs for connection of each FX Series Inverter/Charger.
