2060 HF Telephone Interconnect

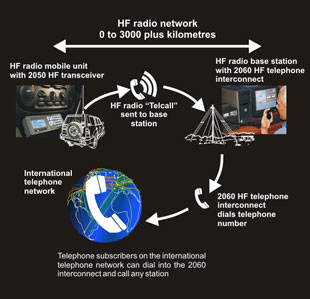

    The Barrett 2060, a fully automatic telephone interconnect, enables high frequency radio network stations to become part of the international telephone network.

    HF stations fitted with a "Telcall" facility, based on selective call format CCIR 493, can direct dial any telephone number on the international telephone network.

    Telephone subscribers on the international telephone network can dial into the 2060 interconnect and call any station on the HF network.

    The Barrett 2060 interconnect also supports MIL-STD 188-141B ALE allowing ALE networks to have fully automatic access to the telephone network.

    The 2060 has network management facilities that include variable access levels for HF stations calling the telephone network, comprehensive call logging and remote supervision by a dial up computer link.



Technical Specifications For This Product
    • Standards: Exceeds/complies with Australian/ New Zealand standard AS/NZS 609501:2003 - AMPT 1:2008 AS/ACIF 5002:2005 - AS/ACIF 5004:2006
    • Power Input: 13.8 V DC (11-15 V), > 400 mA
    • Scanning capacity: 30 channels maximum
    • Operating Temperature: 0 to 50°C
    • Dialling modes: DTMF of Decadic <2:1 SWR
    • Dialled Number: 16 digit maximum
    • Transceiver Control: RS-232, 9600bd. Barrett control syntax
    • Transceiver Tx, Rx Audio Levels: 600 Ohm balanced 0dBm adjustable by menu option
    • Transceiver PTT Output: Open collector to ground
    • Frequency Response: 300 to 2800 Hz ±2 dB
    • Hybrid System: DSP based continuously balancing Adaption speed less than 0.5 seconds Ultimate balance better than 40 dB
    • VOX sensitivity: Approx 16 dB below phone line level i.e. 25 dBm
    • Phone line connector: RJ-45
    • Remote supervisory control: Via on-board modem -V.34bis (33.6 kbs)
    • Telecom line: Standard 2 wire automatic exchange Preferably with line reversal "B" party "off hook" and "on hook" If call charging required - 12 to 16 kHz or 50 Hz metering pulses
    • Call progress tones Will respond to standard call progress tones, selectable by country
    • Dimensions 85 mm W x 270 mm D x 70 mm H (2000 series standard enclosure)
    • Weight: 1.4 kg
