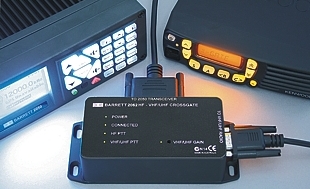

2062 HF-VHF/UHF crossgate

    The 2062 HF-VHF/UHF crossgate provides seamless communications between HF and VHF/UHF networks.

    The Barrett 2062 Crossgate is an effective and affordable solution for extending the line of sight reach of a conventional VHF/UHF networks by linking them to an HF network using Barrett's HF transceivers.

    The 2062 can also be used to give field operators with VHF/UHF handheld radios access to the HF network when away from their vehicles. The 2062 crosspatch links or unlinks the HF and VHF/UHF networks by either a specific Selcall sent from a station on the HF network or by a specific DTMF sequence sent by a station on the VHF/UHF network.

    When the networks are linked, received audio from the HF network is broadcast on the VHF/UHF network and vice versa.


Technical Specifications For This Product
    • Balanced audio in: Rx balanced audio in, 600 ohm input impedance, 0 dBm recommended
    • VHF/UHF speaker level audio in: Radio speaker level single ended audio input, 10 k ohm input impedance, gain adjustable on the crossgate
    • VHF/UHF mute in: Active low, radio mute state input, optically isolated
    • VHF/UHF audio out: Tx balanced audio out, 0 dBm nominal into 600 ohm load
    • VHF/UHF mic level audio out: Tx single ended audio out, mic input level
    • VHF/UHF PTT out: Active low, radio external PTT keying
    • VHF/UHF ground: 0 V radio ground, internally RF isolated
    • HF ground: 0 VHF radio ground
    • +13.8 V: +13.8 V power from HF radio
    • RS-232 I/O RS-232 control signals between HF radio and crossgate
    • HF balanced audio in: Rx balanced audio in, 600 ohm input impedance, 0 dBm recommended
    • HF balanced audio out: Tx audio out, 0 dBm nominal, into 600 ohm load
    • HF PTT out: Active low radio external PTT keying
    • HF mute in: Active low radio mute state input
