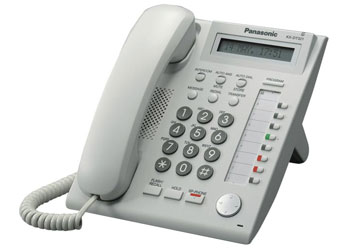

IP Proprietary Telephone: KX-NT321
1-line display
*
8 flexible CO buttons
Digital Speakerphone
2 Ethernet ports (100 Base-T)
Power-over-Ethernet (PoE), US model : backlit type
Product Specifications
Specifications
LCD
16 Characters x1 Line
CO keys
8
Self Labelling
No
CODEC
*3
G.729A, G.711, G.722
SP Phone
Yes
2nd Ethernet Port (For PC)
Yes
LCD Backlight
No
Handset Volume Control
4 Levels Electric vol.
SP-Phone (Monitor) Volume Control
12 Levels Electric vol.
Ringer Volume Control
4 Levels Electric vol.+ Off position
Power Supply
AC Adaptor, and Power over Ethernet (Power over LANTM (IEEE802.3af Class2)compliant)
LCD Contrast Control
3 Levels
Message/Ringer Lamp
Yes
*5
Whisper OHCA
Yes
Headset Jack (Ø2.5mm)
Yes
Auto Redial
Yes
*6
Off-Hook Monitor
Yes
Handset/Headset Mic Mute
Yes
Speaker Phone Mic Mute
Yes
Phone Directory
Yes
Feature Access
No
(Out-going) Call Log
Yes
(In-coming) Call Log
Yes
Melody Ringer
No
Wall Mount
Possible
Peer-to-Peer Connection
Yes
Automatic rerouting to secondary PBX
Yes
VLAN
Yes
QoS
DiffServ
Max. Jitter Buffer Size
200 ms
DHCP Client
Yes
Wideband CODEC
Yes
System Programming
Yes
Station Programming
Yes
Local Programming
Yes
Operating Temperatures
0-40 degree centigrade
Option Unit Connention
KX-NT303 Add-on 12 Key Module
No
KX-NT305 Add-on 60 Key Module
*2
No
KX-NT307 Bluetooth® Module
No
Optional AC Adaptor
KX-A239
Specifications
Dimensions : W x D x H mm
175 x 210 x 129 (Low)
175 x 188 x 148 (High)
Weight : Kg
0.82 kg
Note:
*1
KX-NT366 is only available for KX-TDE100/KX-TDE200.
*2
KX-NT305 is only available for KX-TDE100/KX-TDE200.
*3
G.722 is only available for KX-TDE100/KX-TDE200.
*4
Dual-coloured LED (Green & Red)
*5
Single coloured LED (Red)
*6
Auto Redial feature is available on digital CO.
