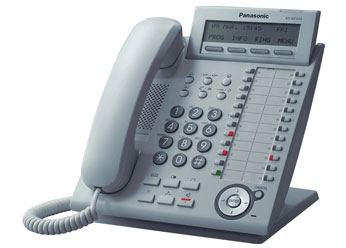

IP Proprietary Telephone: KX-NT343
  • 3-line backlit display
  • 24 flexible CO buttons
  • Digital Speakerphon
  • Product Specifications
    Specifications
    LCD 24 Characters x 3 Lines
    CO keys 24
    Self Labelling No
    CODEC *3 G.729A, G.711, G.722
    SP Phone Yes
    2nd Ethernet Port (For PC) Yes
    LCD Backlight Yes
    Handset Volume Control 4 Levels Electric vol.
    SP-Phone (Monitor) Volume Control 12 Levels Electric vol.
    Ringer Volume Control 4 Levels Electric vol.+ Off position
    Power Supply AC Adaptor, and Power over Ethernet (Power over LANTM (IEEE802.3af Class2)compliant)
    LCD Contrast Control 4 Levels
    Message/Ringer Lamp Yes *4
    Whisper OHCA Yes
    Headset Jack (├ś2.5mm) Yes
    Auto Redial Yes *6
    Off-Hook Monitor Yes
    Handset/Headset Mic Mute Yes
    Speaker Phone Mic Mute Yes
    Phone Directory Yes
    Feature Access Yes
    (Out-going) Call Log Yes
    (In-coming) Call Log Yes
    Melody Ringer 10 Titles
    Wall Mount Possible
    Peer-to-Peer Connection Yes
    Automatic rerouting to secondary PBX Yes
    VLAN Yes
    QoS DiffServ
    Max. Jitter Buffer Size 200 ms
    DHCP Client Yes
    Wideband CODEC Yes
    System Programming Yes
    Station Programming Yes
    Local Programming Yes
    Operating Temperatures 0-40 degree centigrade
    Option Unit Connention
    KX-NT303 Add-on 12 Key Module Yes
    KX-NT305 Add-on 60 Key Module *2 Yes
    KX-NT307 Bluetooth® Module Yes
    Optional AC Adaptor KX-A239
    Specifications
    Dimensions : W x D x H mm 202x240x129mm (Low angle:Tilt 15deg.)
    202x201x211mm (High angle:Tilt 45deg.)
    Weight : Kg 1.25kg
