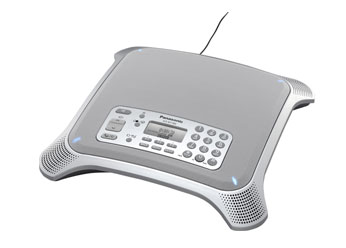

IP Conference phone: KX-NT700BX
High voice quality using a wideband speech codec (G.722 (16kHz sampling)
Full duplex acoustic echo-canceller
Speech speed conversion
Conference recording with SD Memory Card
3-party conferencing
Mic noise cut
Product Specifications
Analogue Line
I/F connector
RJ11 x 1
Dialling
Dial Pulse (DP) 10pps, 20pps
Ethernet Interface
I/F connector
RJ45 x 1
Transceiver type
10/100Base-T, Auto MDI/MDX
General Purpose Interface
USB Interface
USB2.0 (Low/Full speed) Device Function x 1
SD slot
1
Audio Line In/Out
Ø3.5mm mini-jack x 1
Microphone Interface
I/F connector
RJ9 x 2
Interface
4 Wire (Power, GND, MIC-Mute, MIC-Signal-Input)
Audio Interface
Loudspeaker
1
Speaker volume
8 steps
Range of frequency
300Hz - 7000Hz
Stereo/mono
mono
Internal microphone
2 element microphone arrays x 4 corners
Microphone coverage
Radius of 3m
Range of frequency
300Hz - 7000Hz
S/N Ratio
Above 58dB at 1kHz
Display
LCD Resolution
103 x 48 Full dot
LCD Back light
Yes (white)
LCD contrast
Yes (6-level)
Keypad
Function key
F1, F2, F3
Volume (scroll) key
UP, DOWN
Dial key
0- 9,
*
,#
Other key
SP-Phone, Flash, Redial / Pause, Mute / Clear, Exit, Menu, Set, Mic Noise cut
*1
Chassis
Dimensions (W x H x D)
275mm x 55mm x 275mm
Weight
1300g
Power supply
AC Adapter
PQ LV206 Input : AC120 V60HZ
PQ LV206AL Input : AC220V-240V 50HZ/60HZ
PQ LV216 Input : AC220V-240V 50HZ/60HZ
Output : DC9V 750mA
PoE
IEEE802.3af compliant
Environment conditions
Operating temperature
0°C - 40°C
Storage temperature
-10°C - 50°C
Relative humidity
Less than 90% (non-condensing)
Signalling Protocol
SIP
RFC3261 and companion RFCs
VoIP
CODEC
G.711(A/u), G.729a, G.722 (64kbps)
PLC
Yes (G.711 only)
Silence suppression
No
CNG
No
Jitter buffer
Max 500ms (G.729a)
Packet Header
No
QoS
IEEE 802.1 P / Q, Layer 3 TOS, Diffserv
Network
TCP / IP, UDP, RTP
Yes
FTP client
Yes
DHCP client
Yes
Telephone
Calendar
Yes
Caller ID
No
Phonebook
100
Dialer Storage Capacity
32
Mute
Yes
Flash
Yes
Pause
Yes
Redial
Yes
History Redial
10
Ringer Patterns
3
Ringer Volume
Off, Low, Middle, High
SP-Phone Volume
8 steps
Programmable Tone / Pulse
Yes
Multi Point Conferencing
3 points
All/Individual Disconnect
Yes
Conference Recording
Recording time period
120 Minute (64MB SD Card)
Number of recorded data
Maximum 100
New message playback
Yes
FF/REV/STOP
Yes
Skip/Repeat
Yes
All/Individual erase
Yes
Time stamp
Yes
Speakerphone
Speech speed conversion
Conversation mode, Listen mode
Mic Noise Cut
Two setting (High / Low)
Acoustic echo cancellation
Yes (128ms,-30dB)
Line echo cancellation
Yes (16ms - 32ms,-30dB)
AGC
Yes
