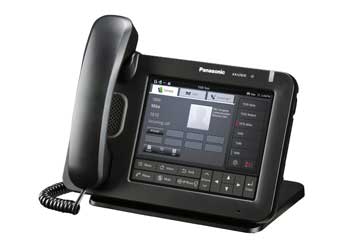

Cordless/Corded SIP Phone: KX-UT670
  • 6 SIP accounts
  • 7 inch touch display
  • HD Voice (G.722)
  • 3-way conference call support
  • Compatible with Asterisk and Broadsoft
  • 2 x GbE ports, PoE
  • Linux based open source operating system
  • Full duplex speaker phone
  • Electronic hook switch (Plantronics)
  • Plug and Play configuration
  • Cable concealing back
  • Long handset cords
  • Non-slip rubber feet
  • Changeable angle stand
  • Wall mounting
    • Product Specifications
    Display
    LCD Display 262,000 colors
    LCD Size 7 inch touch display
    LCD Backlight 15/Auto
    HD Video 720p
    Install Options
    Desk Mount Tilt Yes – 2 positions
    Wall Mount KX-A434 (optional)
    Power Adaptor KX-A422 (optional)
    Audio Features
    Handset, Speaker, Headset Volume 15 levels
    Ringtones 32
    Ringer Volume 7 levels + Off
    Headset Port 2.5 mm
    Electronic Hook Switch Control Port* 3.5 mm
    Audio Codec G.711a-law / G.711µ-law / G.722 (wideband) / G.729a
    HD Voice Yes
    Speaker Phone Yes (Full Duplex)
    Keys
    Programmable Keys 24 (4 pages of 6 keys)
    Software Features
    Phone Book (Entries) Depends on memory
    Call Log Entries 100 in + 100 out
    Conferencing 3 parties (within terminal – multi-party dependent on server)
    XML From 2Q/2012
    Music on Hold Supplied by Host Service (PBX / SIP Server)
    Memory 50 MB
    IP Features
    SIP Accounts 6
    SIP Compatibility RFC 3261 Standard SIP Server, Asterisk, Broadsoft, Panasonic SIP PBX
    IP Version IPv4
    DHCP Client Yes
    DNS Yes
    HTTP Yes
    HTTPS Yes
    SNTP Client Yes
    VLAN (802.1q) Yes
    QoS (DiffServ) Yes
    Configuration
    Plug & Play Configuration Server based configuration, TR-069, Panasonic Redirect Server
    Manual Configuration Internal web Configurator, Local (LCD based) network configuration
    Interface
    Ethernet Ports 2
    Ethernet Interface 10/100/1000 Mbps
    PoE (Power over Ethernet) Yes
    Bluetooth Optional
    USB 1 (USB 2.0 Host)
    SD Card Slot SDXC Memory Card / SDHC Memory Card / SD Memory Card
    Power Consumption
    PoE Standby: 5.2 W (Backlight OFF)
    Talking: 7.0 W
    AC Adaptor Standby: 4.6 W (Backlight OFF)
    Talking: 6.2 W
    Max PoE: 12.9 W
    AC Adaptor: 11.5 W
    Operating Environment 0 °C - 40 °C (32 °F - 104 °F)
    Dimensions
    (Width x Depth x Height; handset on cradle, stand attached)
    High position: 270 mm x 180 mm x 220 mm
    Low position: 270 mm x 192 mm x 170 mm
    Weight
    (with handset, handset cord and stand)    		 1300 g
      Note:
      * Plantronics headsets can be used with these units. Not all headsets are guaranteed to operate.
