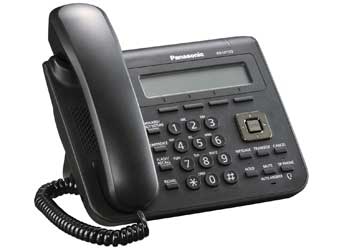

Cordless/Corded SIP Phone: KX-UT123/113
  • 2 SIP accounts
  • 3 line display for features and for CID/dialled number
  • HD Voice (G.722)
  • 500 entry phonebook*1
  • 3-way conference call support
  • Compatible with Asterisk and Broadsoft
  • 2 x 10/100M ports, PoE*2
  • Low standby power consumption
  • XML Application Interface
  • Easy operation
  • Plug and Play configuration
  • Ergonomic recessed button
  • Cable concealing back
  • Long handset cords
  • Non-slip rubber feet
  • Wall mounting
  • *1 100 entry phonebook for the KX-UT113.
  • *2 1 x 10/100M ports, PoE for the KX-UT113.
    • Product Specifications
    Display
    LCD Display Monochrome Graphical
    LCD Size 242 x 55 pixels – 3 lines
    LCD Contrast 6 levels
    LCD Backlight
    KX-UT123 On/Auto/Off
    KX-UT113 N/A
    Install Options
    Wall Mount KX-A432 (optional)
    Power Adaptor KX-A239 (optional)
    Audio Features
    Handset, Speaker, Headset Volume 8 levels (includes echo cancellation and distortion prevention)
    Ringtones 32
    Ringer Volume 6 levels + Off
    Headset Port 2.5 mm
    Audio Codec G.711a-law / G.711µ-law / G.722 (wideband) / G.729a / G.726 (32K)
    HD Voice Yes
    Speaker Phone Yes
    Software Features
    Phone Book (Entries)
    KX-UT123 500
    KX-UT113 100
    Call Log Entries 30 incoming calls + 30 outgoing calls
    Conferencing 3 parties (within terminal – multi-party dependent on server)
    XML Yes
    Music on Hold Supplied by Host Service (PBX / SIP Server)
    IP Features
    SIP Accounts 2
    SIP Compatibility RFC 3261 Standard SIP Server, Asterisk, Broadsoft, Panasonic SIP PBX
    IP Version IPv4
    DHCP Client Yes
    DNS Yes
    HTTP Yes
    HTTPS Yes
    SNTP Client Yes
    VLAN (802.1q) Yes
    QoS (DiffServ) Yes
    Configuration
    Plug & Play Configuration Server based configuration, TR-069, Panasonic Redirect Server
    Manual Configuration Internal web Configurator, Local (LCD based) network configuration
    Interface
    Ethernet Ports
    KX-UT123 2
    KX-UT113 1
    Ethernet Interface 10/100 Mbps
    PoE (Power over Ethernet) Yes
    Power Consumption
    PoE Standby: 1.8 W (ECO mode off), 1.3 W (ECO mode on)
    Talking: 2 W (ECO mode off), 1.5 W (ECO mode on)
    AC Adaptor Standby: 1.6 W (ECO mode off), 1 W (ECO mode on)
    Talking: 2 W (ECO mode off), 1.5 W (ECO mode on)
    Max 6 W
    Operating Environment 0 °C - 40 °C (32 °F - 104 °F)
    Dimensions
    (Width x Depth x Height; handset on cradle, stand attached)    		 205 mm x 160 mm x 170 mm
    Weight
    (with handset, handset cord and stand)
    KX-UT123 870 g
    KX-UT113 860 g
